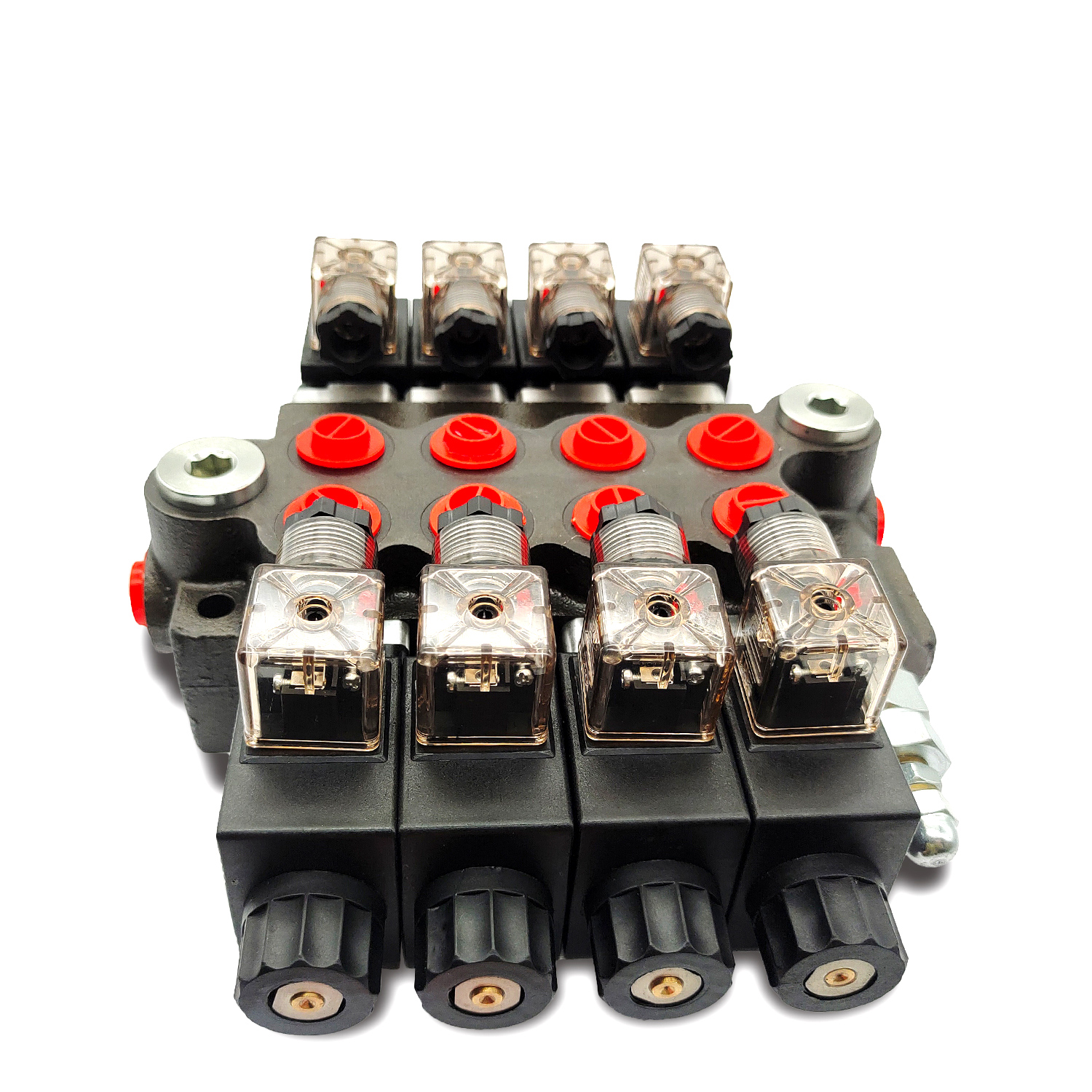

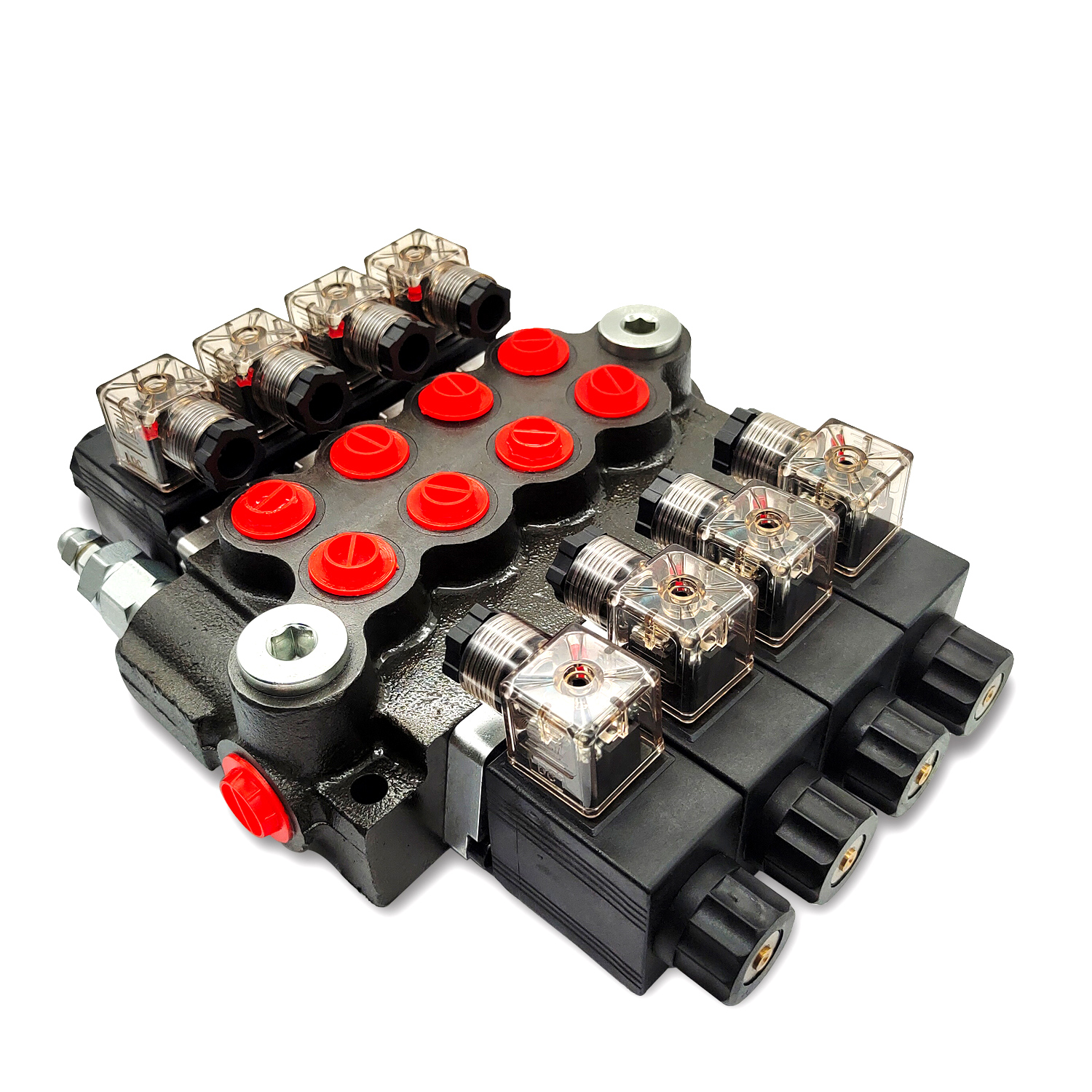

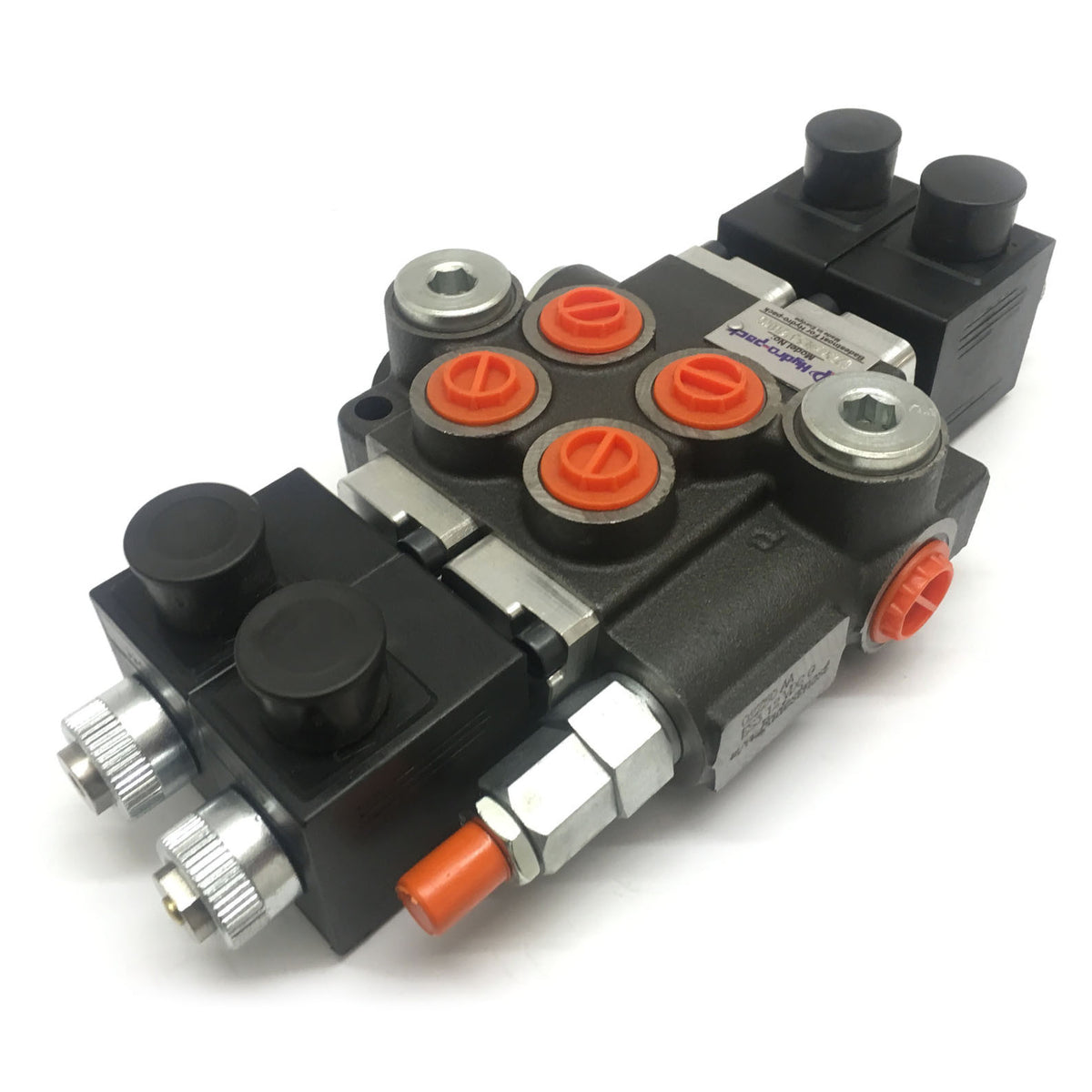

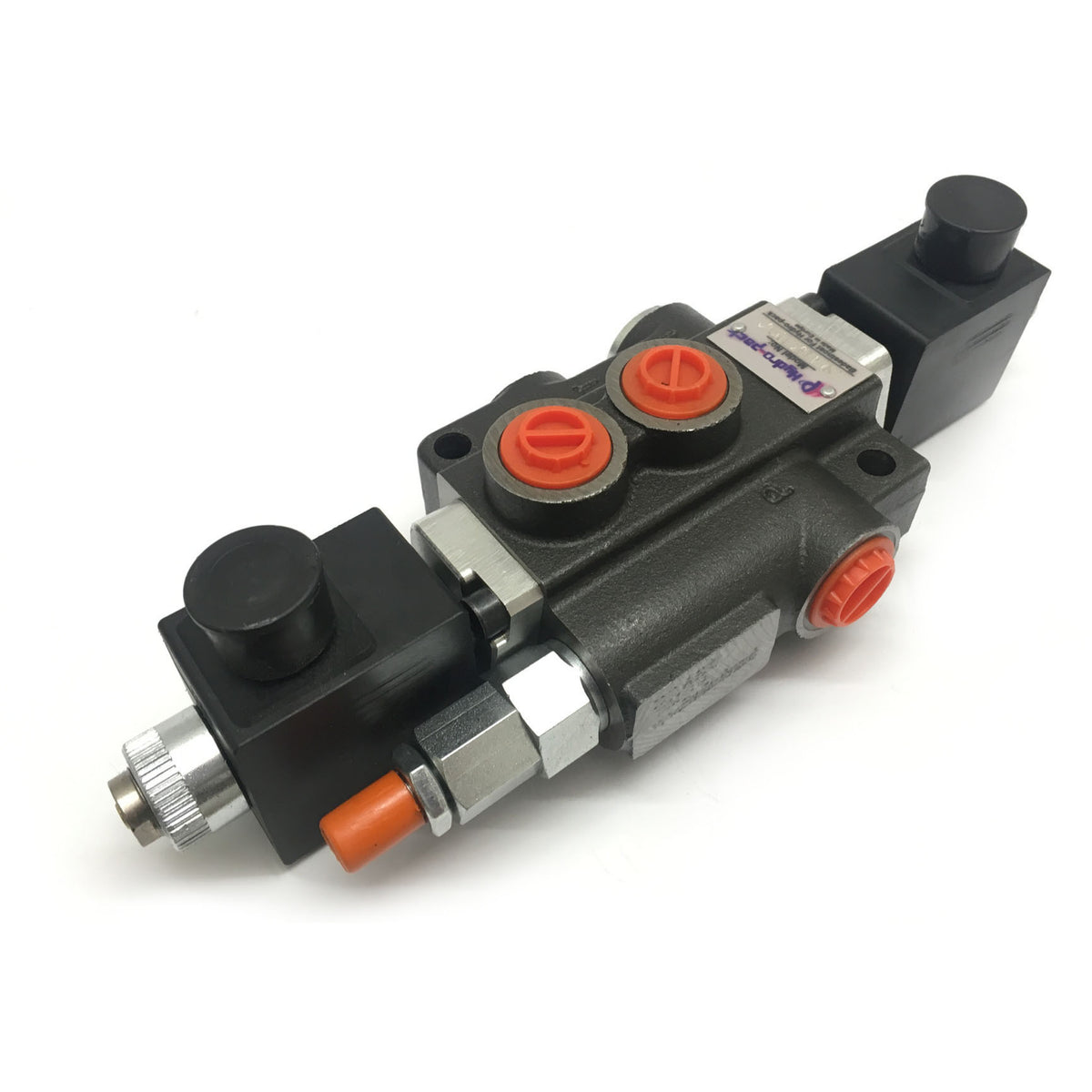

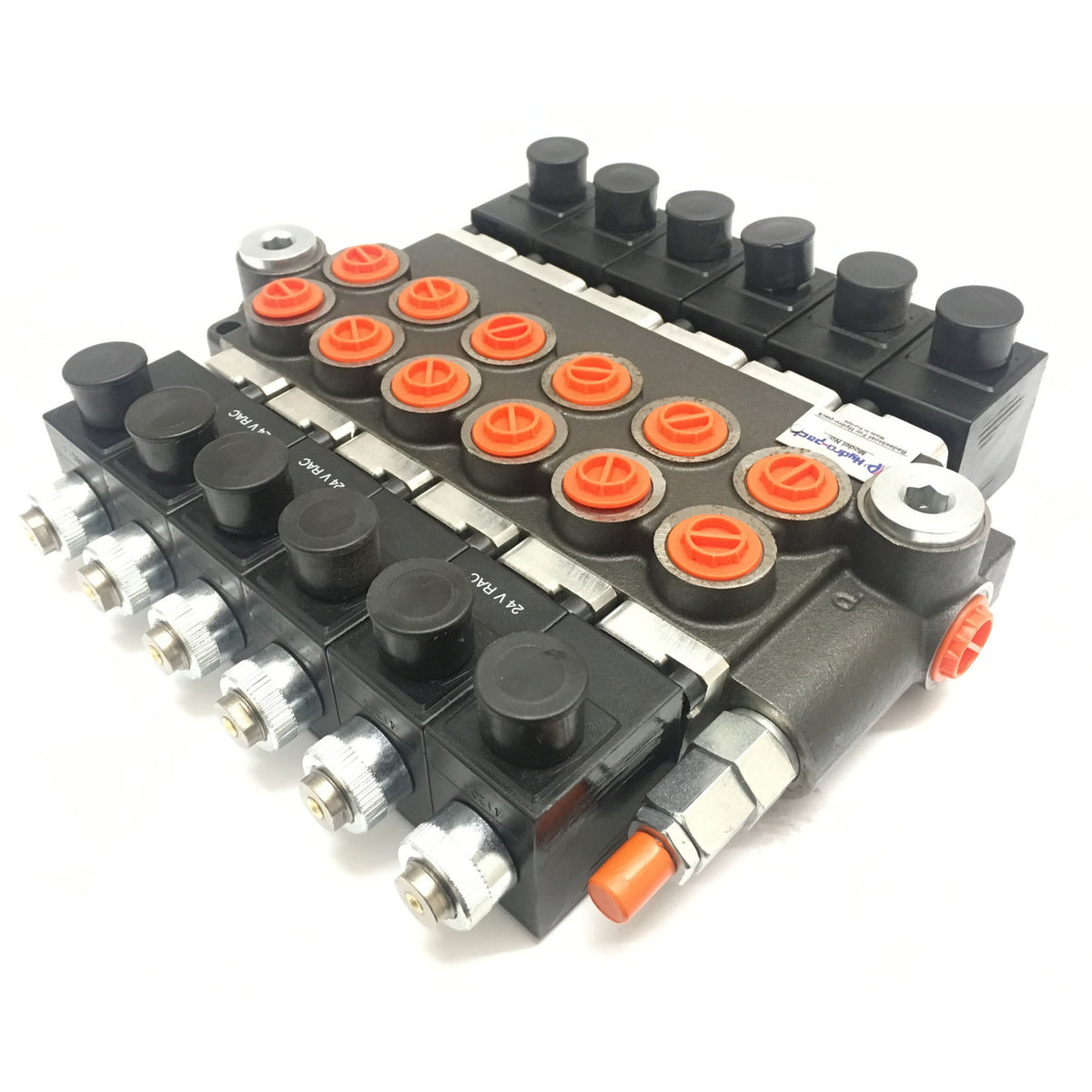

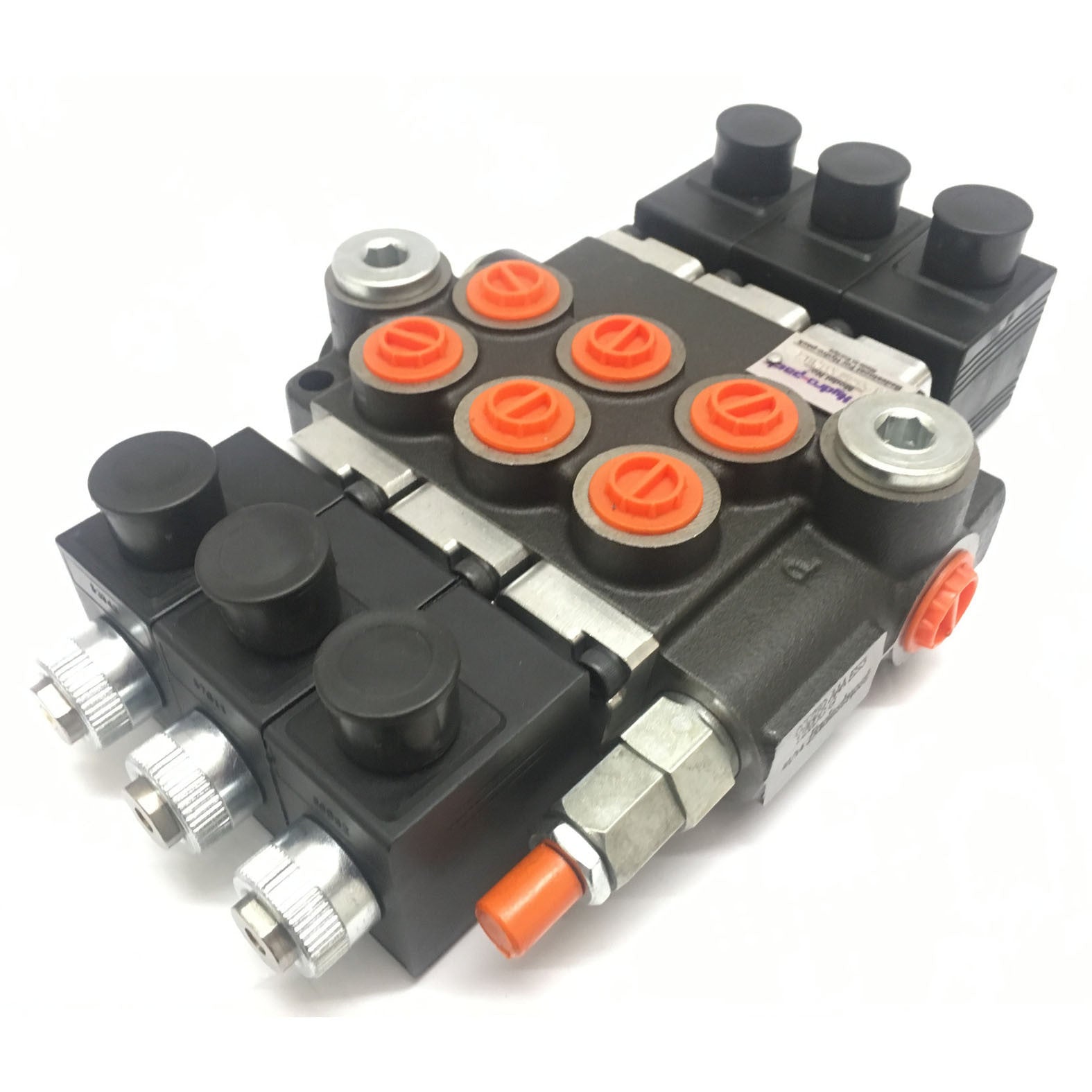

Z50 – Solenoid directional control valve Z50系列电磁控整体式多路换向阀

The monoblock directional control valves-solenoid operated, offer perfect choice whether you are designing a new system or just simply trying to get more out of your current system. With two special spools and 7 different monoblock housings these valves can meet the specific needs of your application and hydraulic schemes by their double acting in 3 positions A and D spools.

Solenoid directional control valve 电磁控制多路换向阀
Spools: 1 to 7 最大联数可做到7联
Max Flow up to 50Lpm 最大流量：80升/分钟
Max. Pressure up to 315Bar 最大压力：31.5兆帕

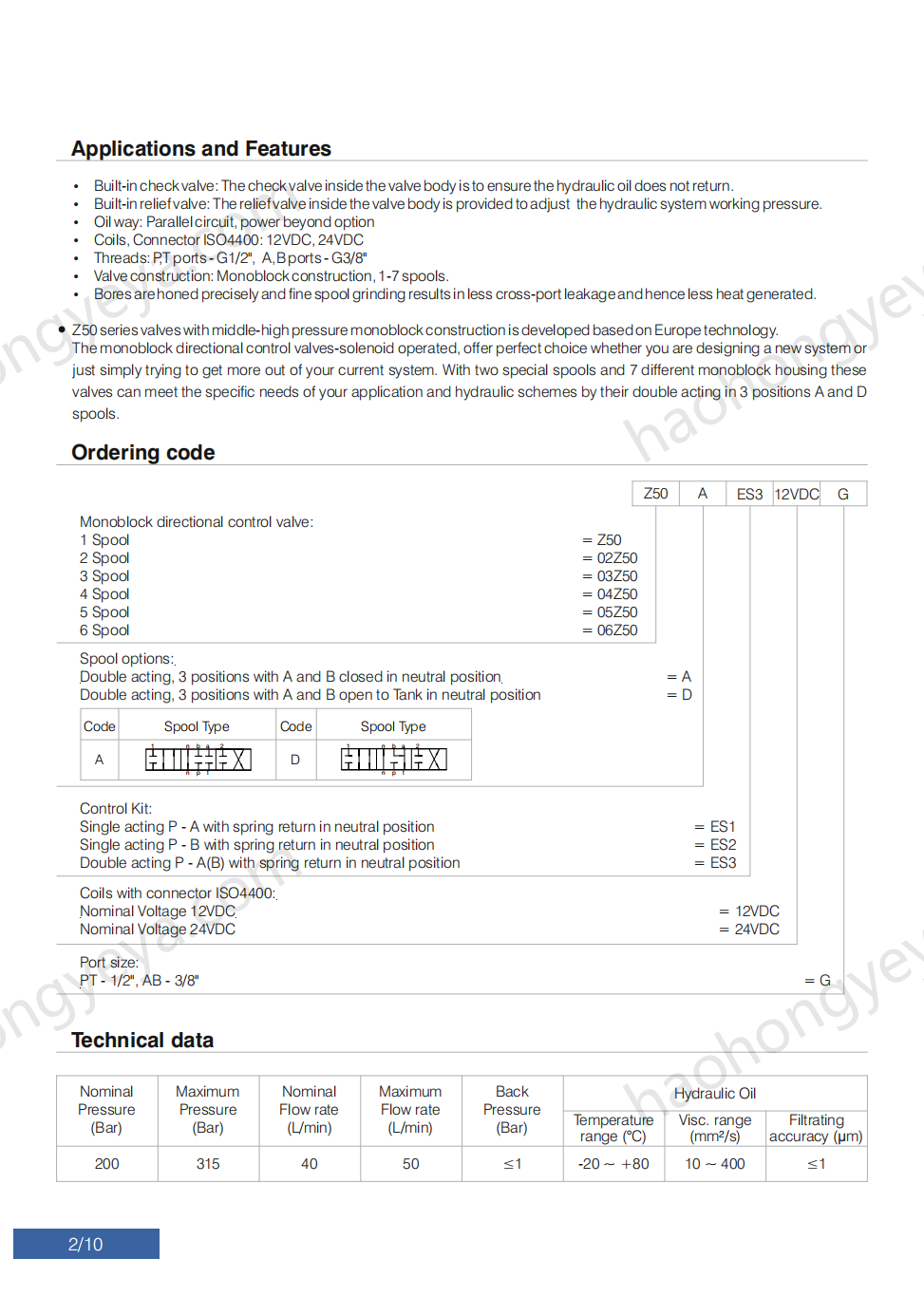

Features:特性

• Built-in check valve: The check valve inside the valve body is to ensure the hydraulic oil does not return.

• 单向阀：防止液压油回流

• Built-in relief valve: The relief valve inside the valve body is provided to adjust the hydraulic system working pressure.

• 溢流阀：调整进入液压系统的工作压力


• Oil way: Parallel circuit, power beyond option

• 油路：并联，可选择带过桥


• Coils, Connector ISO4400: 12VDC, 24VDC

• 电压：12伏，24伏

• Threads: P,T ports – G1/2″, A,B ports – G3/8″

• 油口螺纹：P（进油口），T（回油口）：G1/2，A、B（工作油口）：G3/8


• Valve Construction: Monoblock construction, 1-7 spools.整体式结构，1-7联

• Bores are honed precisely and fine spool grinding results in less cross-port leakage and hence less heat generated.

• 内孔经过精确珩磨，阀芯经过精细研磨，减少端口泄漏，从而降低了发热量。

•
