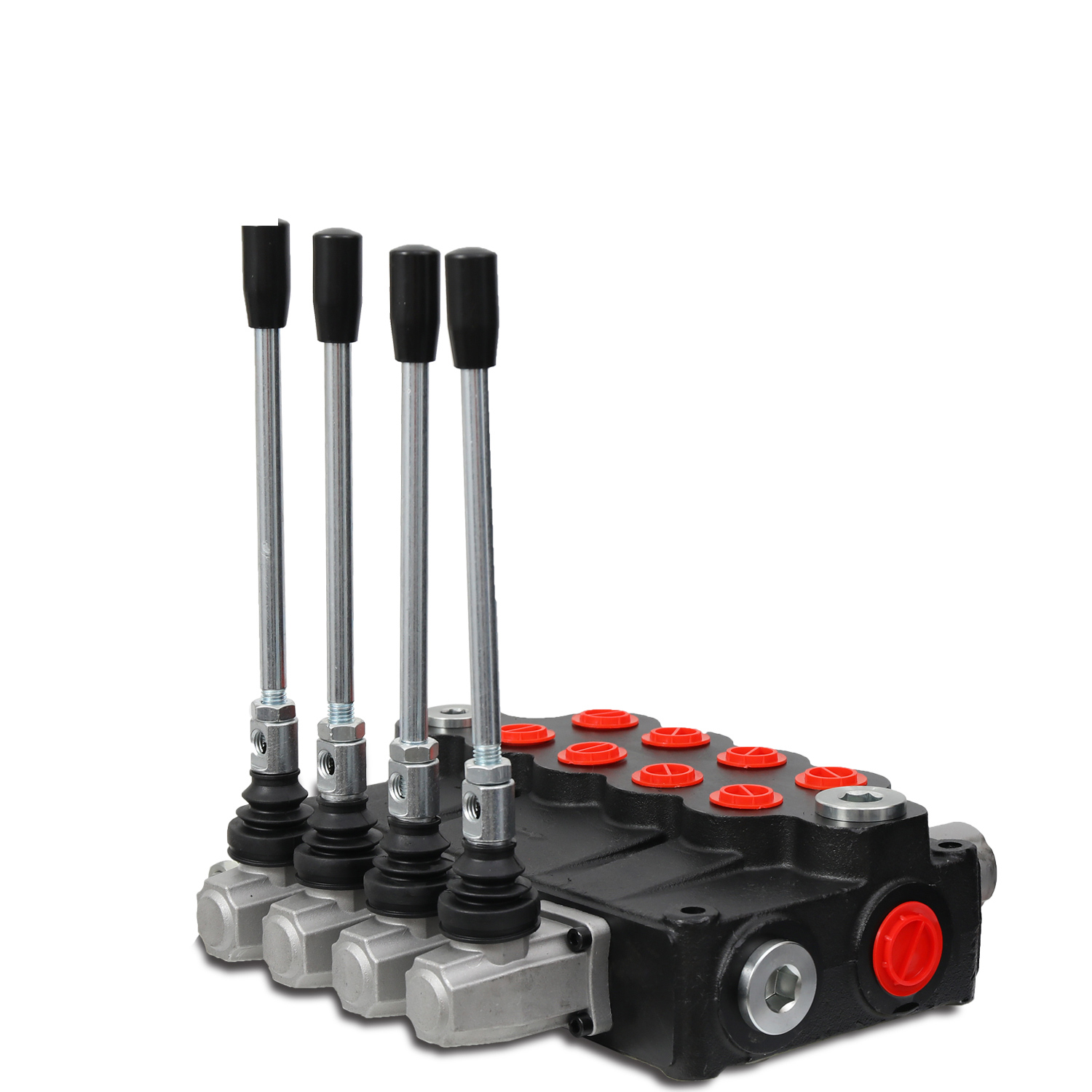

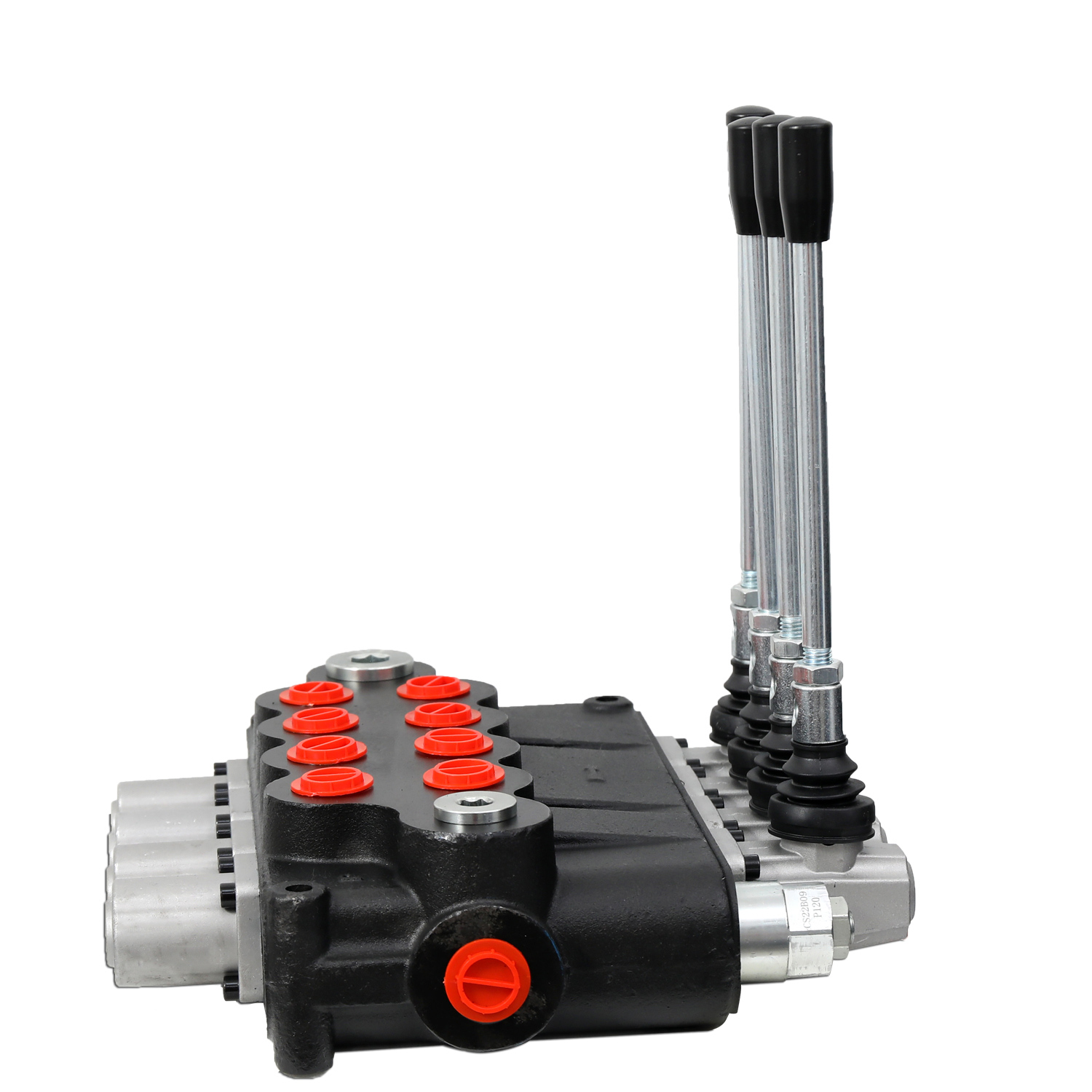

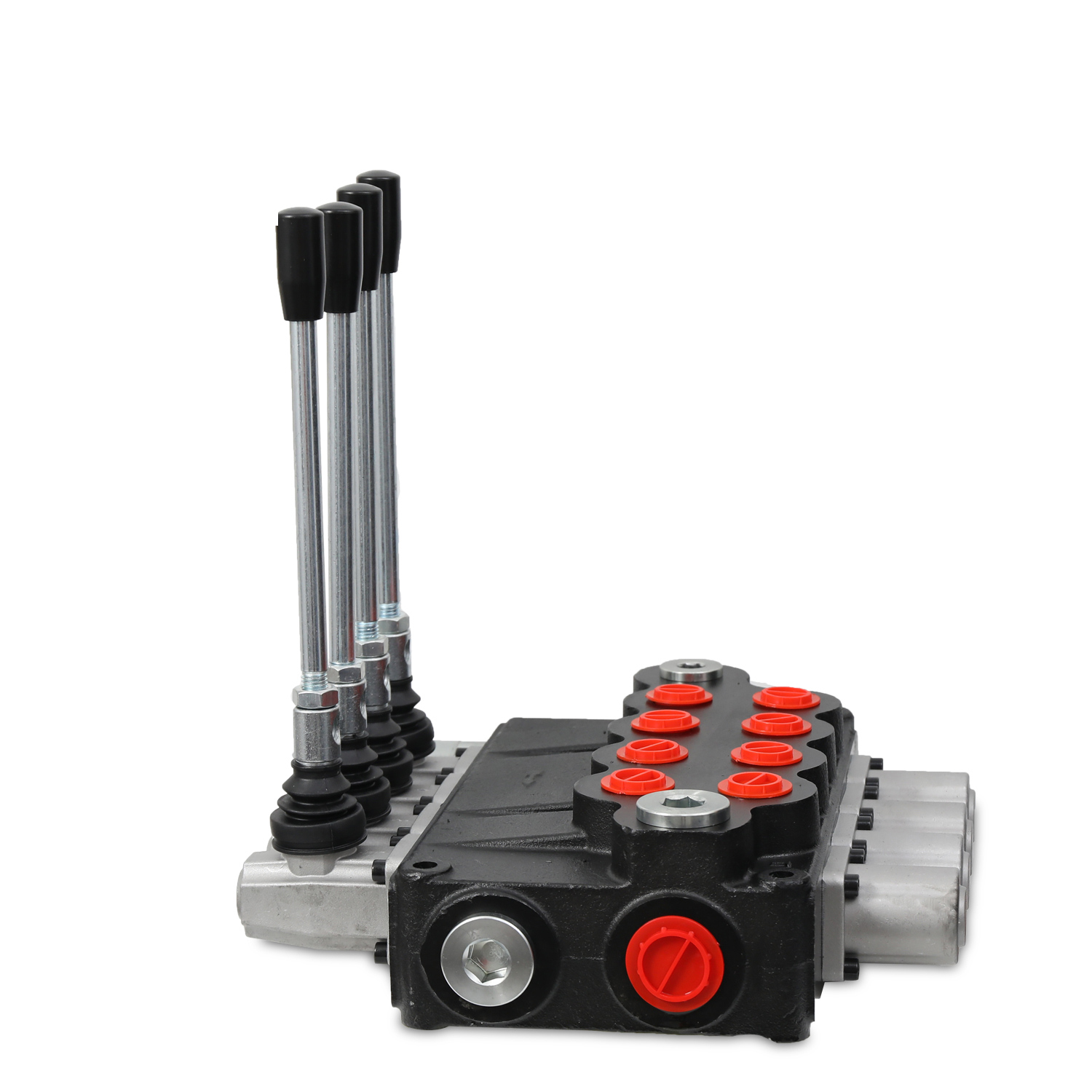

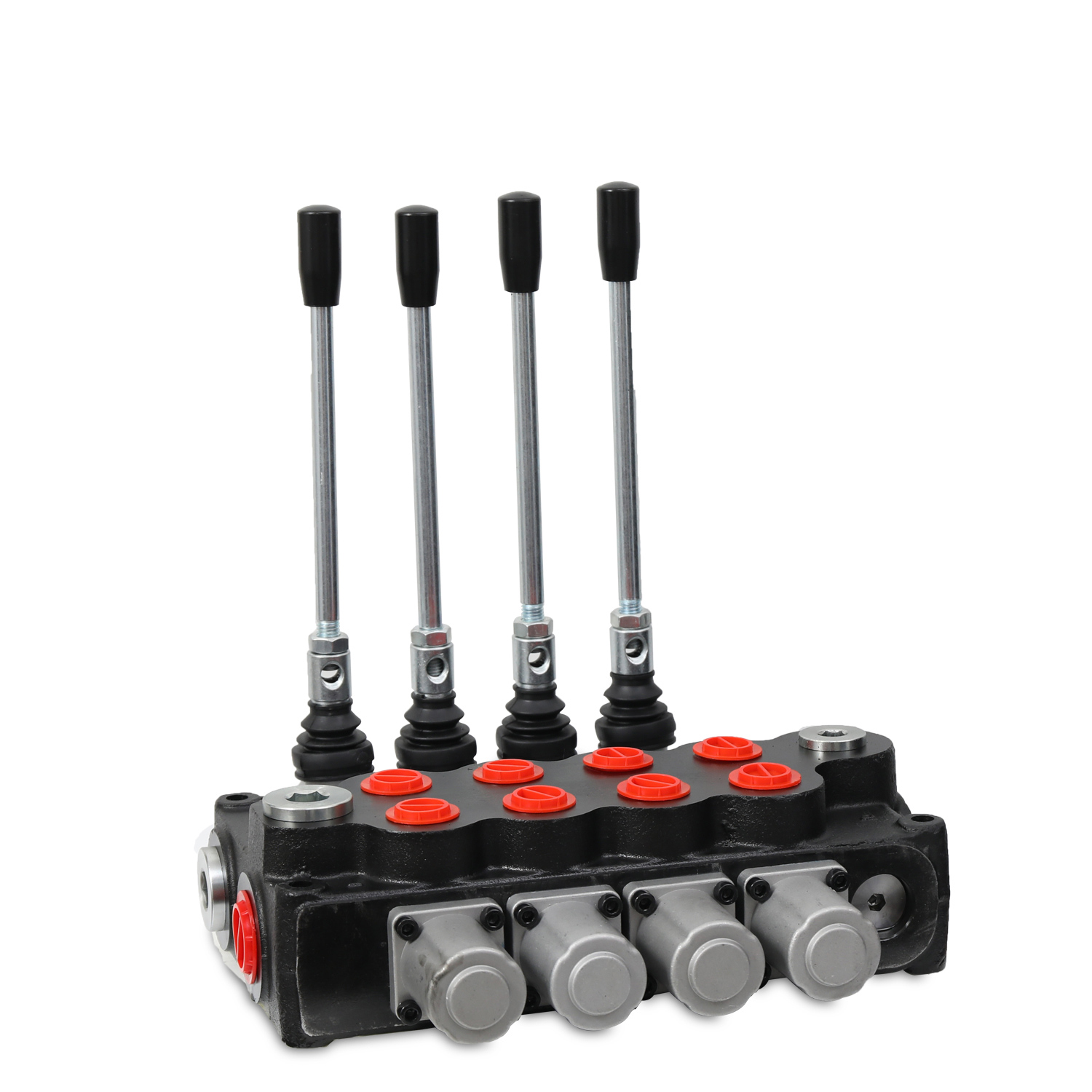

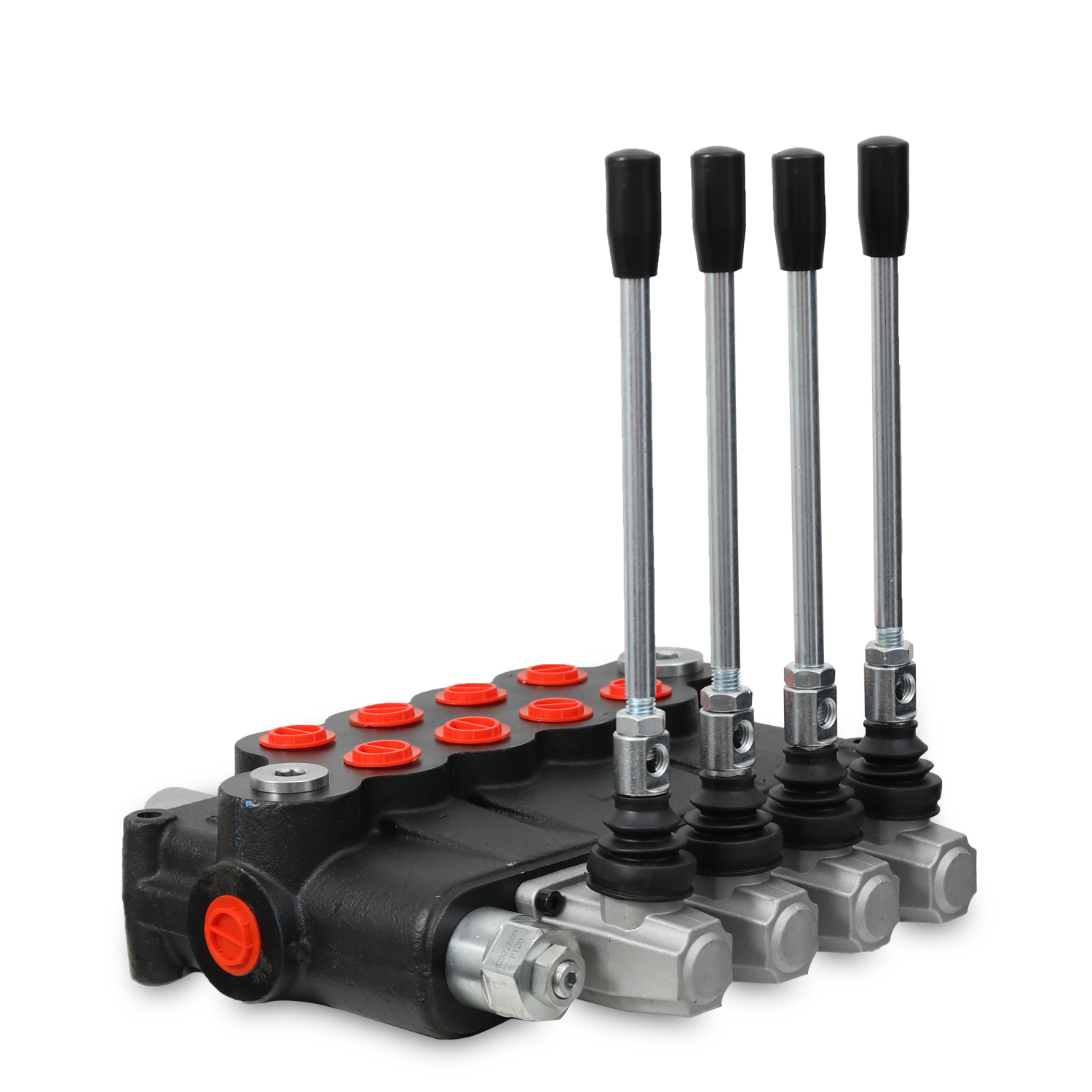

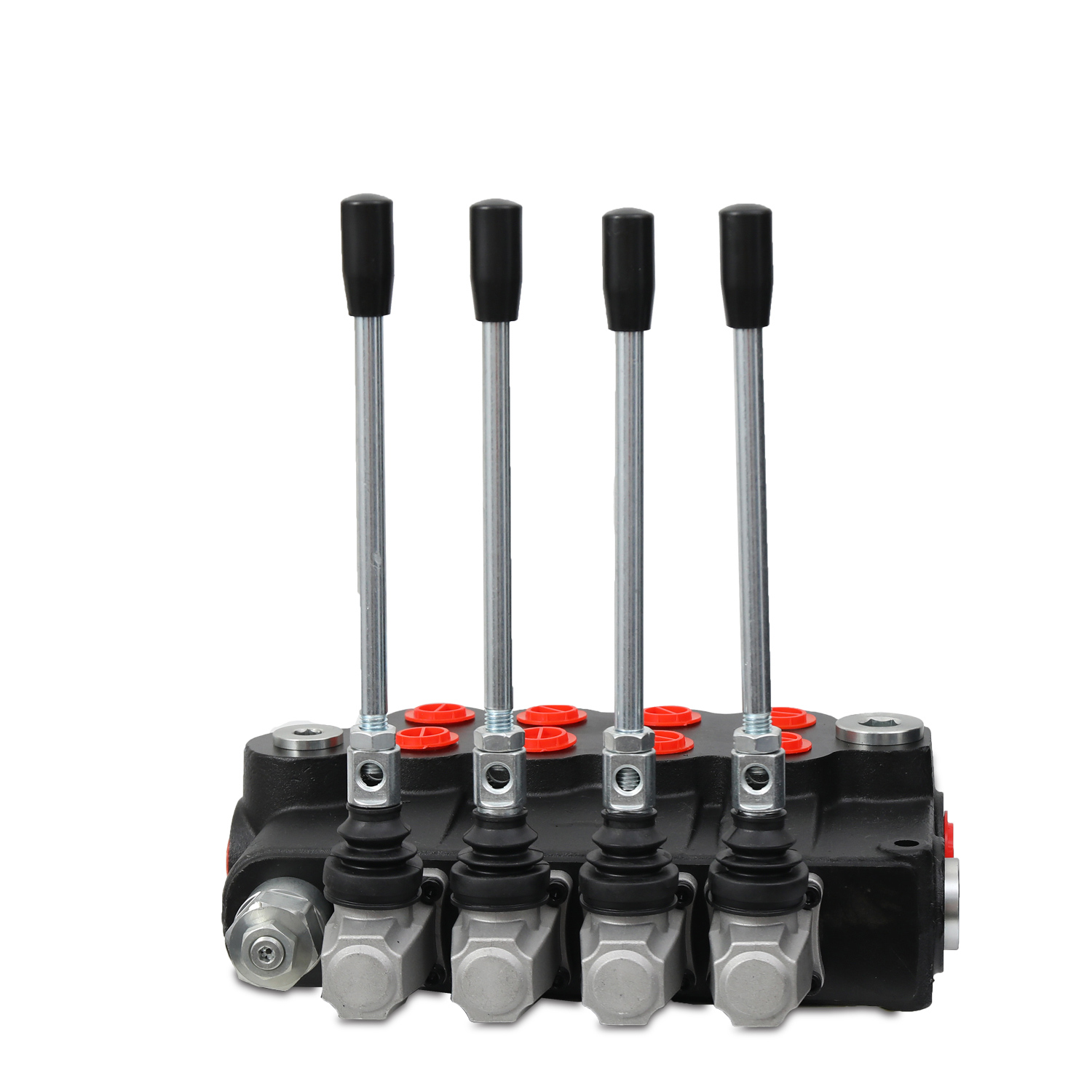

4P120 Directional Control Valve

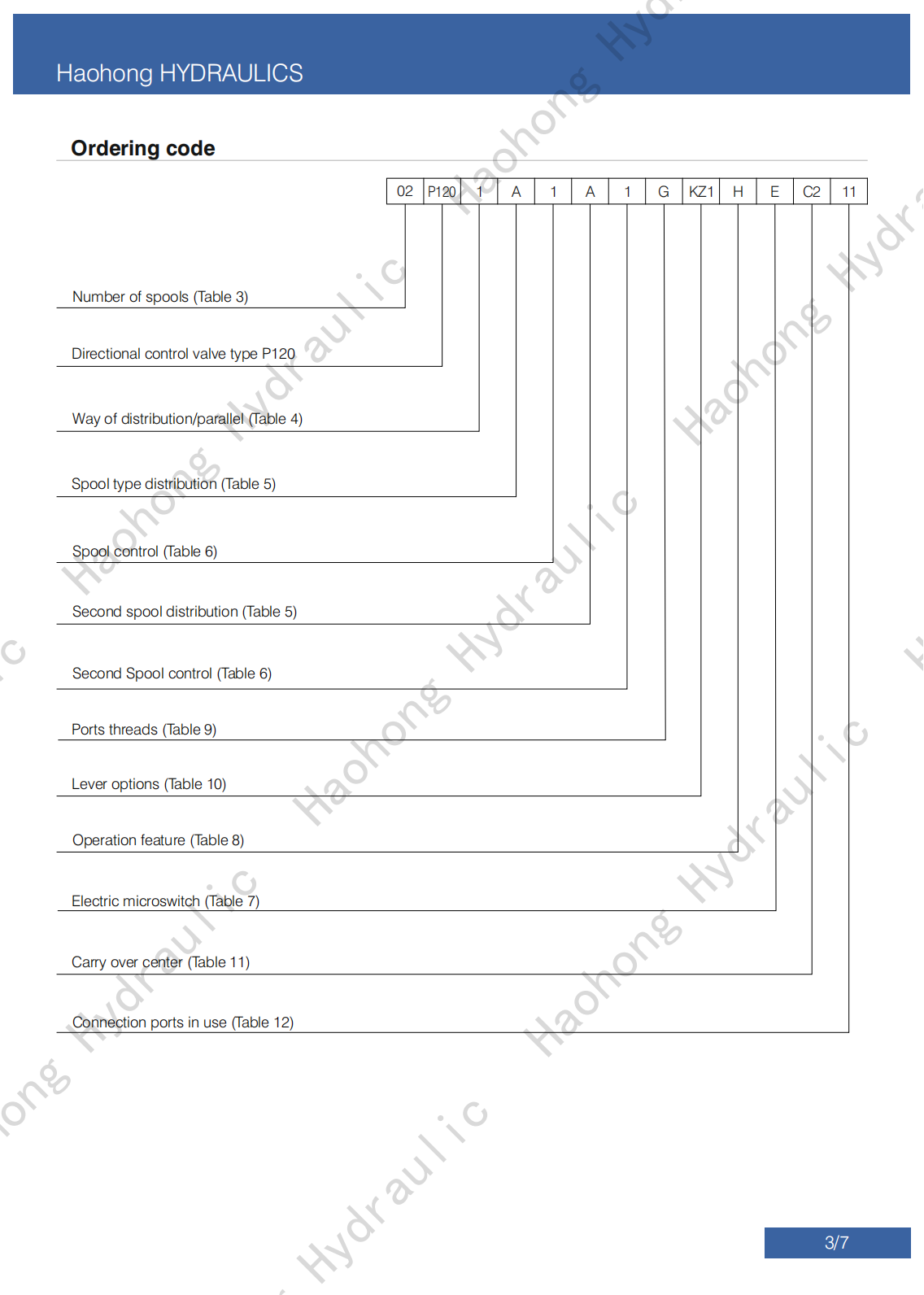

4P120 A1 A1 A1 A1 GKZ1 | 4P120-A1-A1-A1-A1-GKZ1 | 4P120A1A1A1A1GKZ1

Directional control valves are one of the core elementsin a hydraulic system. They help directing the fluid to different components such as hydraulic cylinders or motors.

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement off fluid. Hydropack provide monoblock directional control valves with different capacities and spool control options.

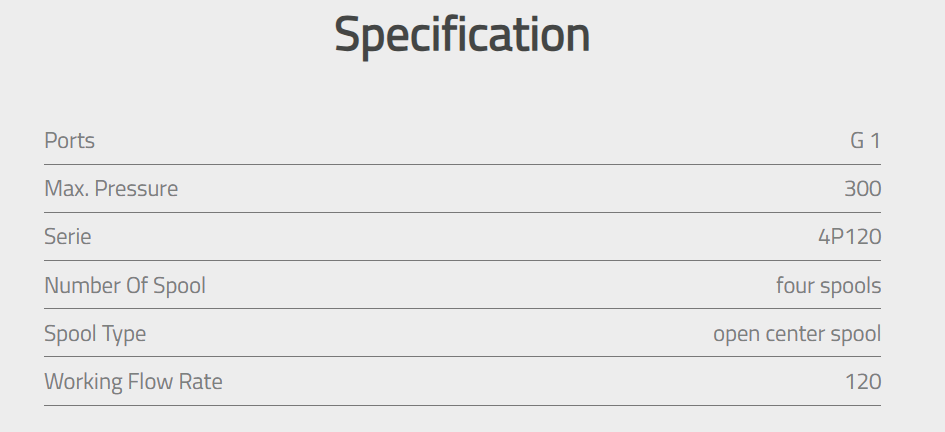

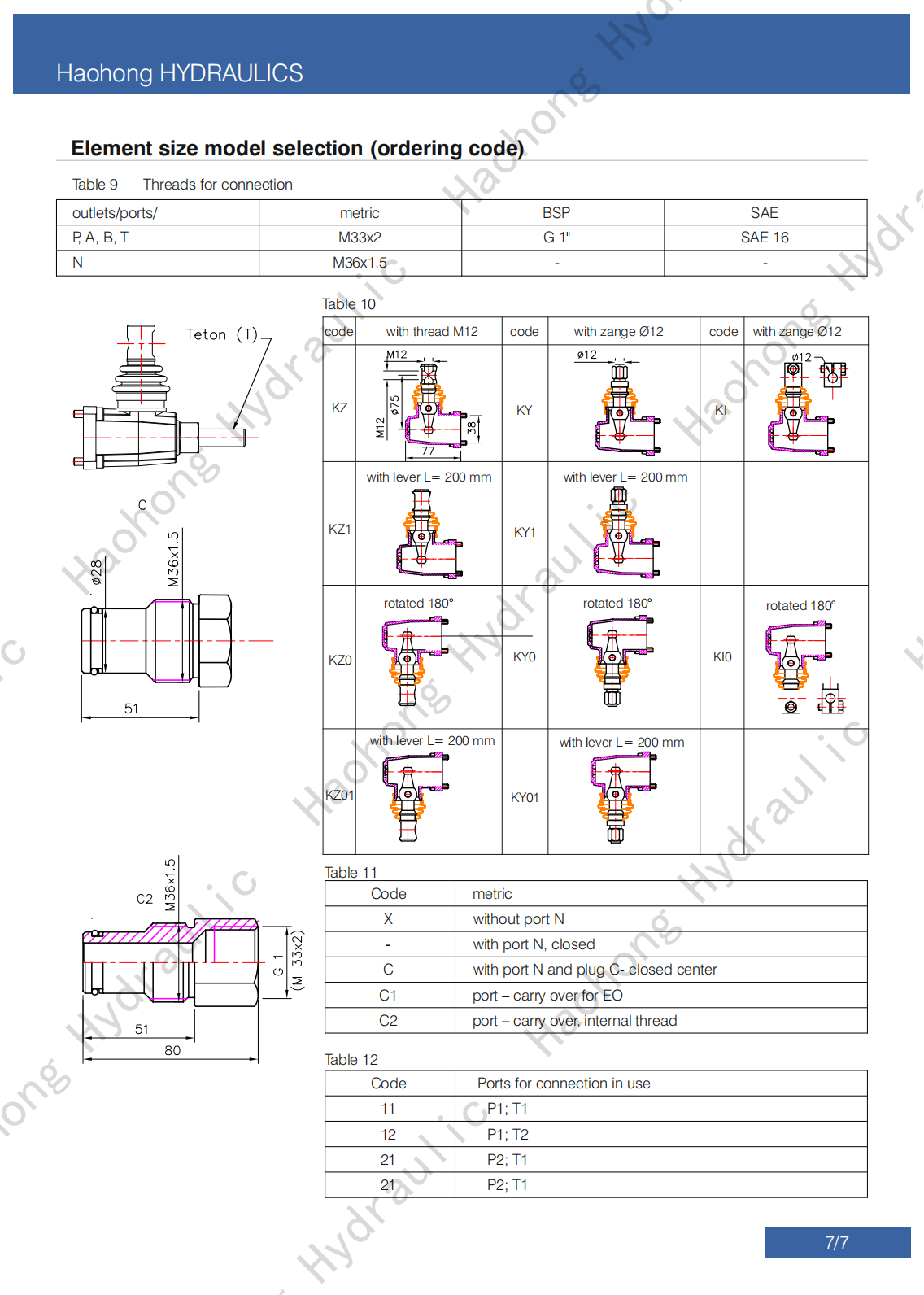

* Spool is open center “A” spool with spring return. Working port threads (A & B) are G 1"

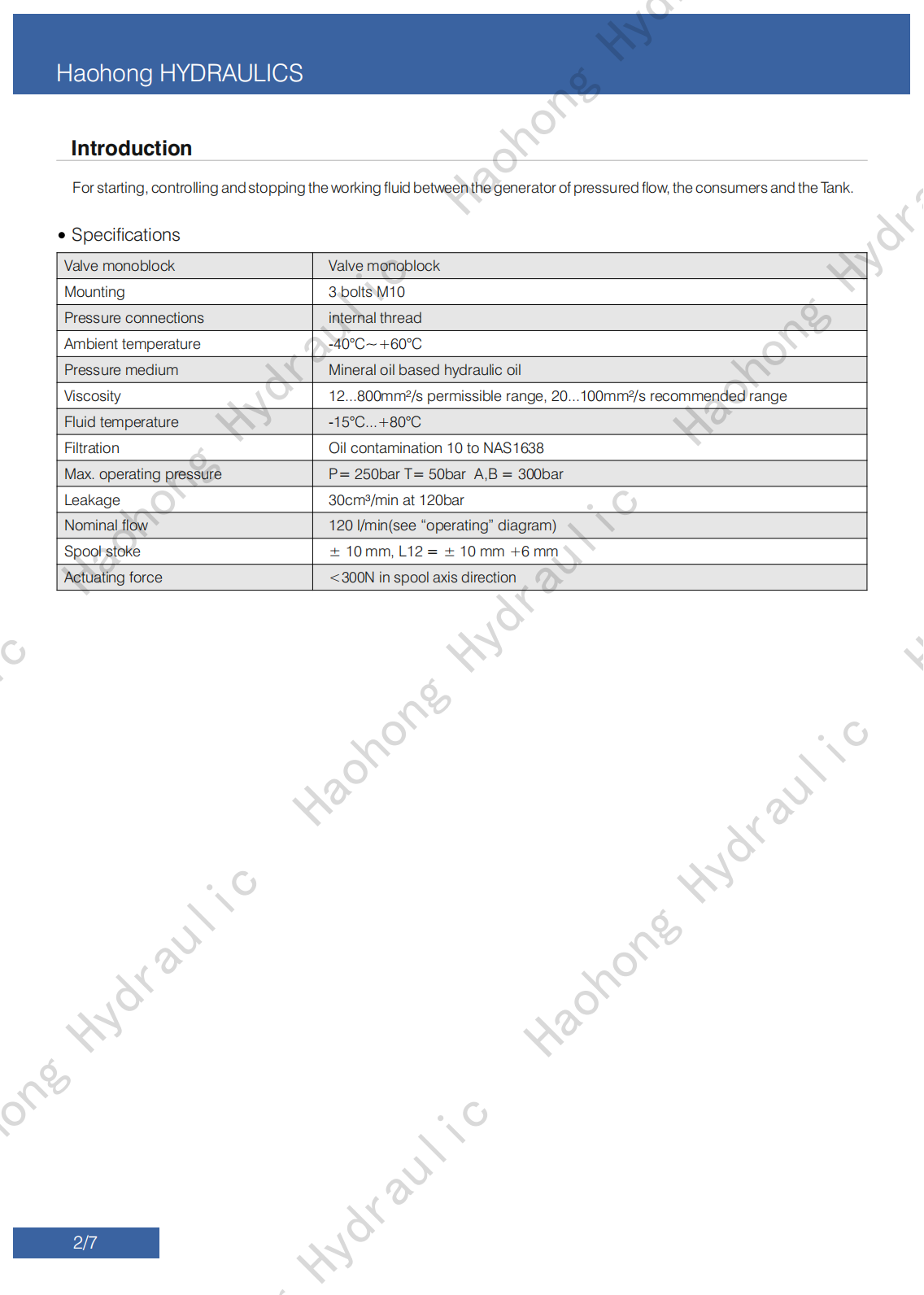

* Max. Pressure P: 250 bar, T: 50 bar, A-B: 300 bar

           - 1st spool: Double acting cylinder spool (A spool), spring return

           - 2nd spool: Double acting cylinder spool (A spool), spring return

            - 3rd spool: Double acting cylinder spool (A spool), spring return

            - 4th spool: Double acting cylinder spool (A spool), spring return
