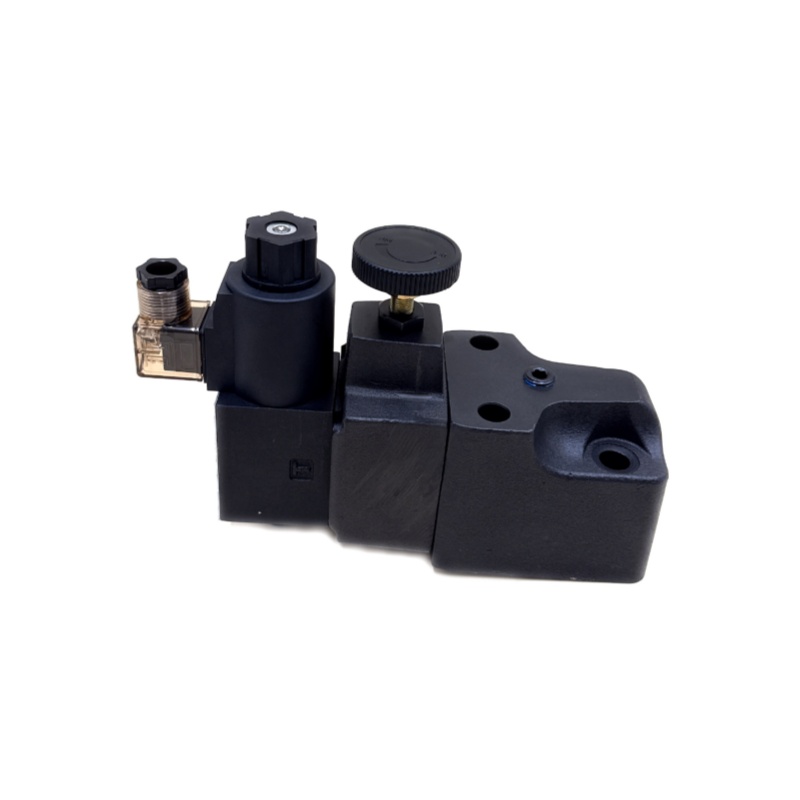

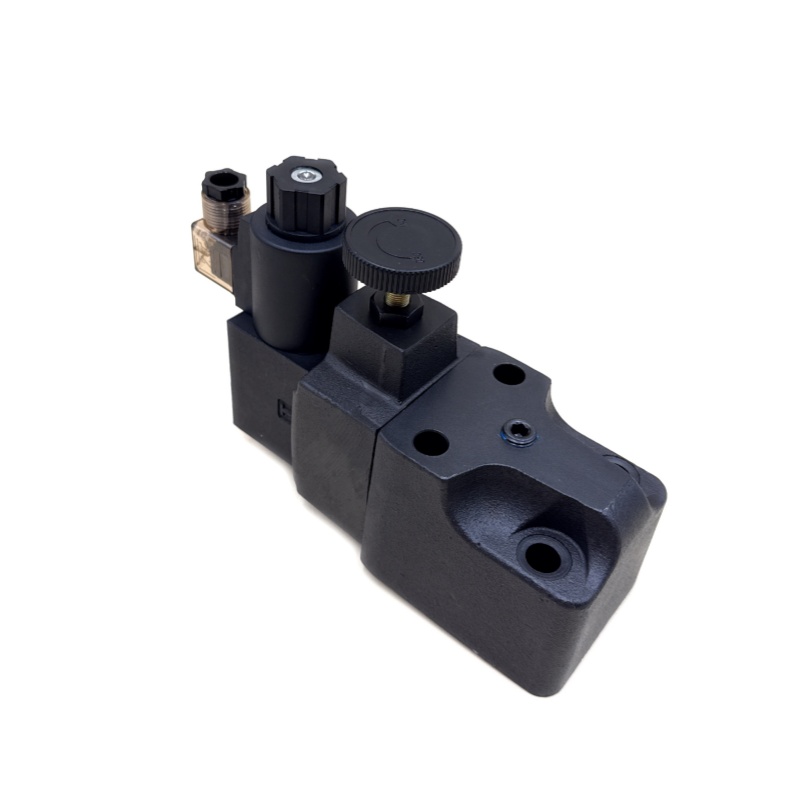

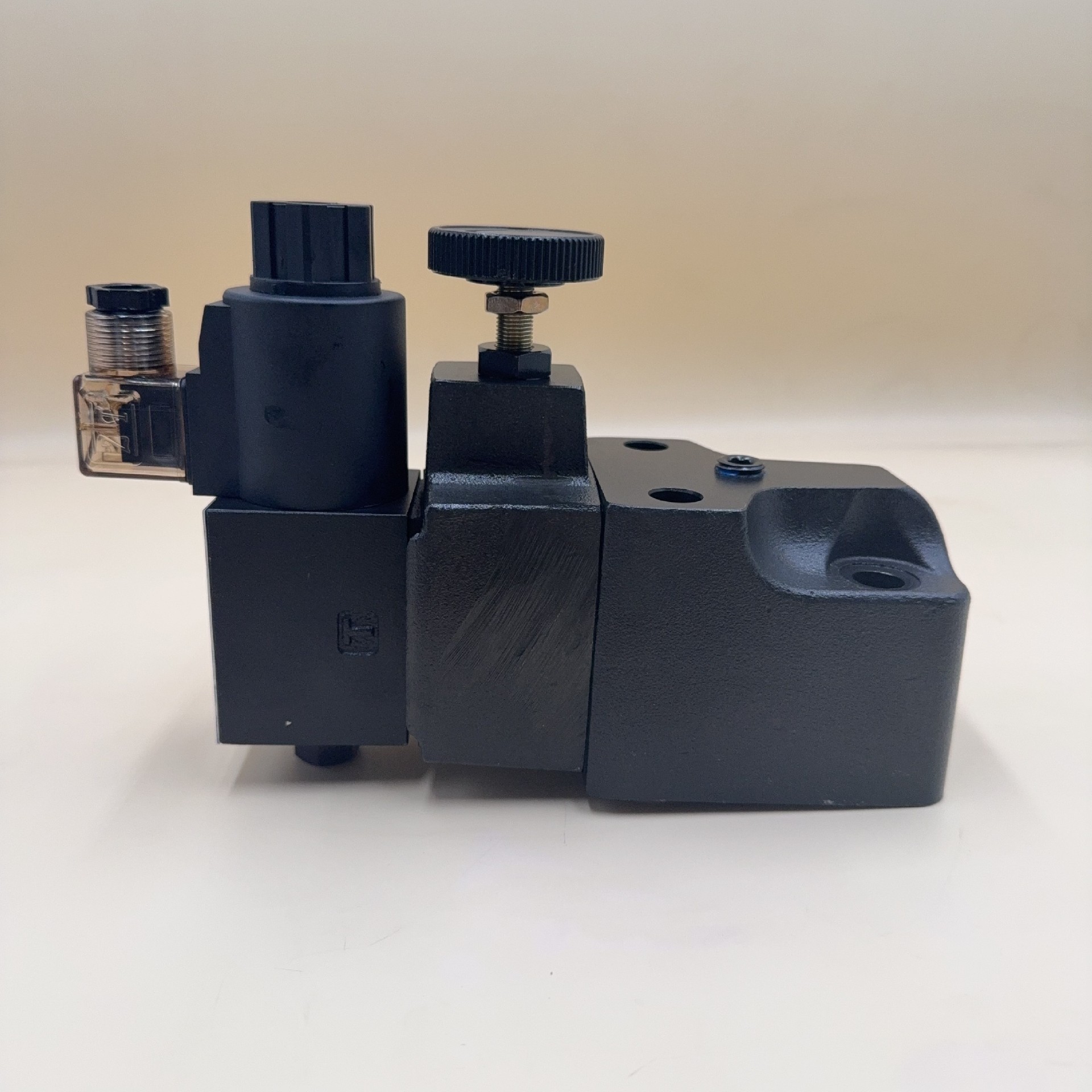

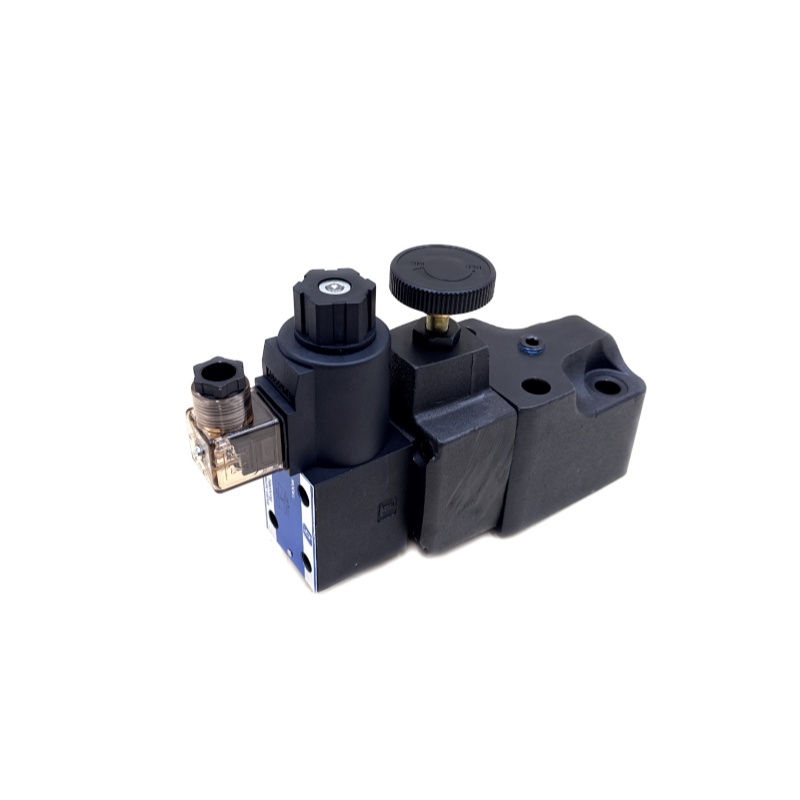

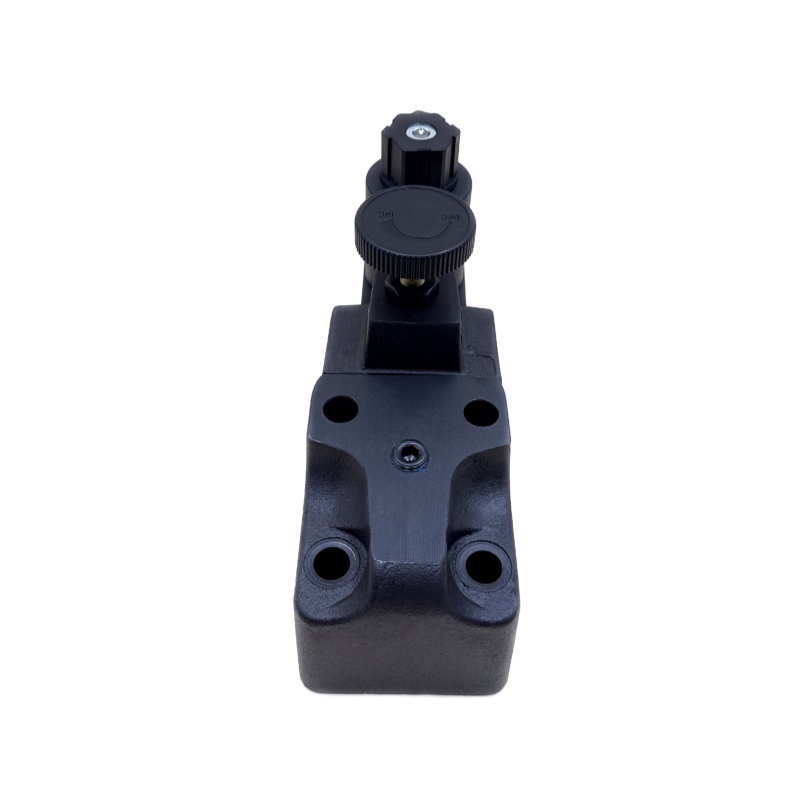

A combination of a relief valve and a solenoid directional valve. Since the solenoid valve is mounted directly on the relief valve and connected to the relief valve drain line, there is no piping between them. The pressure of the pump can be unloaded remotely by an electronic signal acting on the solenoid valve, or regulated by connecting a pilot relief valve to the solenoid valve port. This allows the system to be controlled by a variable or triple pressure.
溢流阀和电磁换向阀的组合。由于电磁阀直接安装在溢流阀上，并与溢流阀的卸油口相连，因此两者之间没有管道连接。泵的压力可通过作用在电磁阀上的电子信号远程卸载，或通过将先导溢流阀连接到电磁阀端口进行调节。这样，系统就可以通过可变压力或三重压力进行控制。

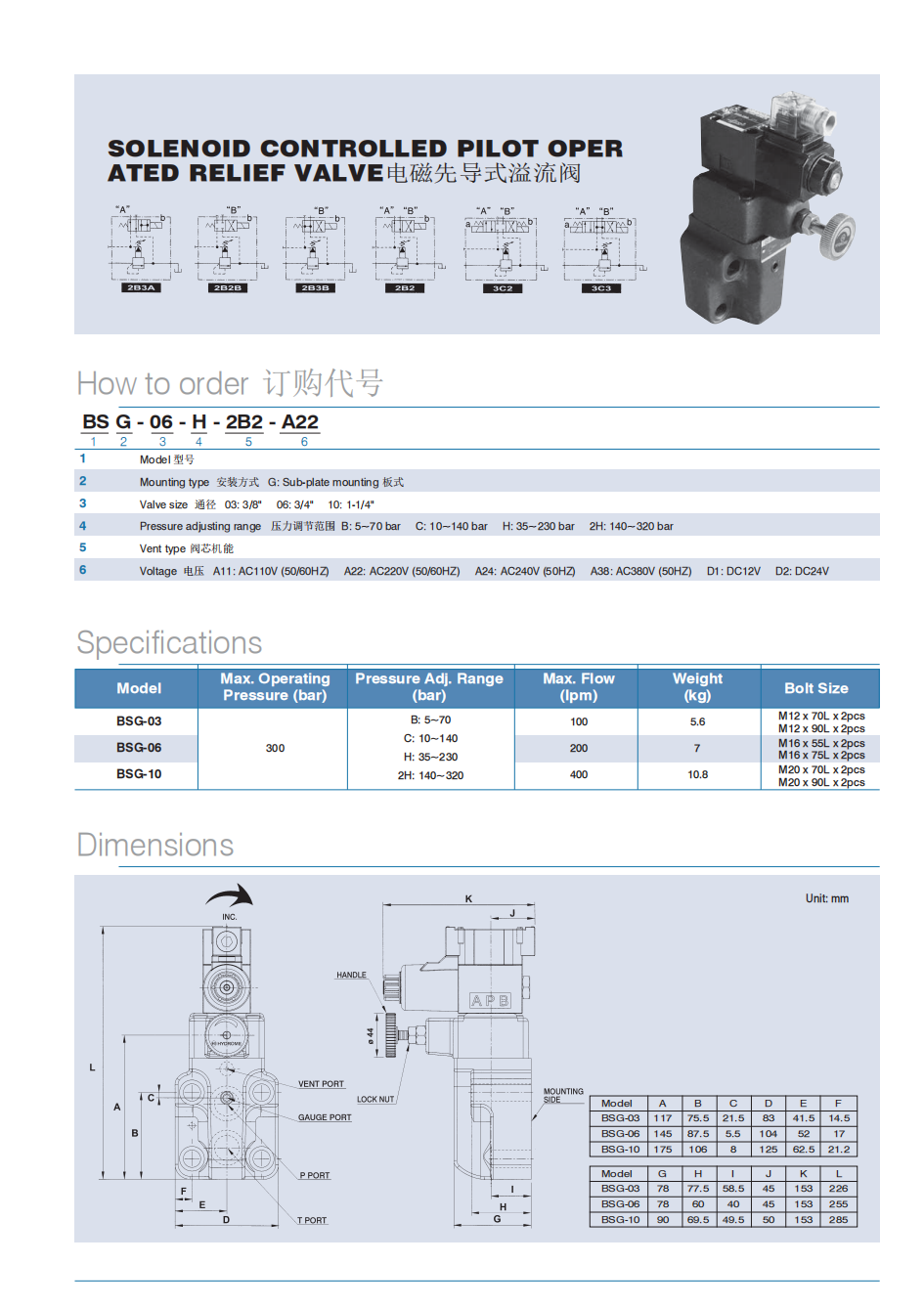

Specification 型号说明
| BS | G | 03 | 1PN | 3 |
|---|---|---|---|---|
| Model 型号 | Installation Type 安装类型 | Port 油口尺寸 | 1PN | Pressure Control Range 压力调节范围（巴） |
| Model | G:Plate 板式 | 03: 3/8" 06 : 3/4" 10: 1-1/4" | Normally open 1PN 常开 | 1: 7-70 2 : 35-140 3 : 70-250 |
Technical Data 技术数据
| Type 类型 | Max. pressure 最大压力（巴） (bar) | Pressure Control range 压力调节范围（巴） (bar) | Max. flow 最大流量（升/分钟） (LPM) | Weight 重量 (kg) | ||
|---|---|---|---|---|---|---|
| BSG-03 | 250 | 1 : 7-70 2 : 35-140 3 : 70-250 | 100 | 5.5 | ||
| BSG-06 | BST-06 | 200 | 4.8 | 4.7 | ||
| BSG-10 | BST-10 | 400 | 5.9 | 7.9 | ||
Attachment 配件
| Type | Safety screw | |
|---|---|---|
| BSG-03 | M12 x 70L…… 2pcs | M12 x 95L…… 2pcs |
| BSG-06 | M16 x 60L…… 2pcs | M16 x 80L…… 2pcs |
| BSG-10 | M20 x 70L…… 2pcs | M20 x 90L…… 2pcs |
Model No. 型号
BSG-03,BSG-06,BSG-10,BST-03,BST-06,BST-10
Model Code

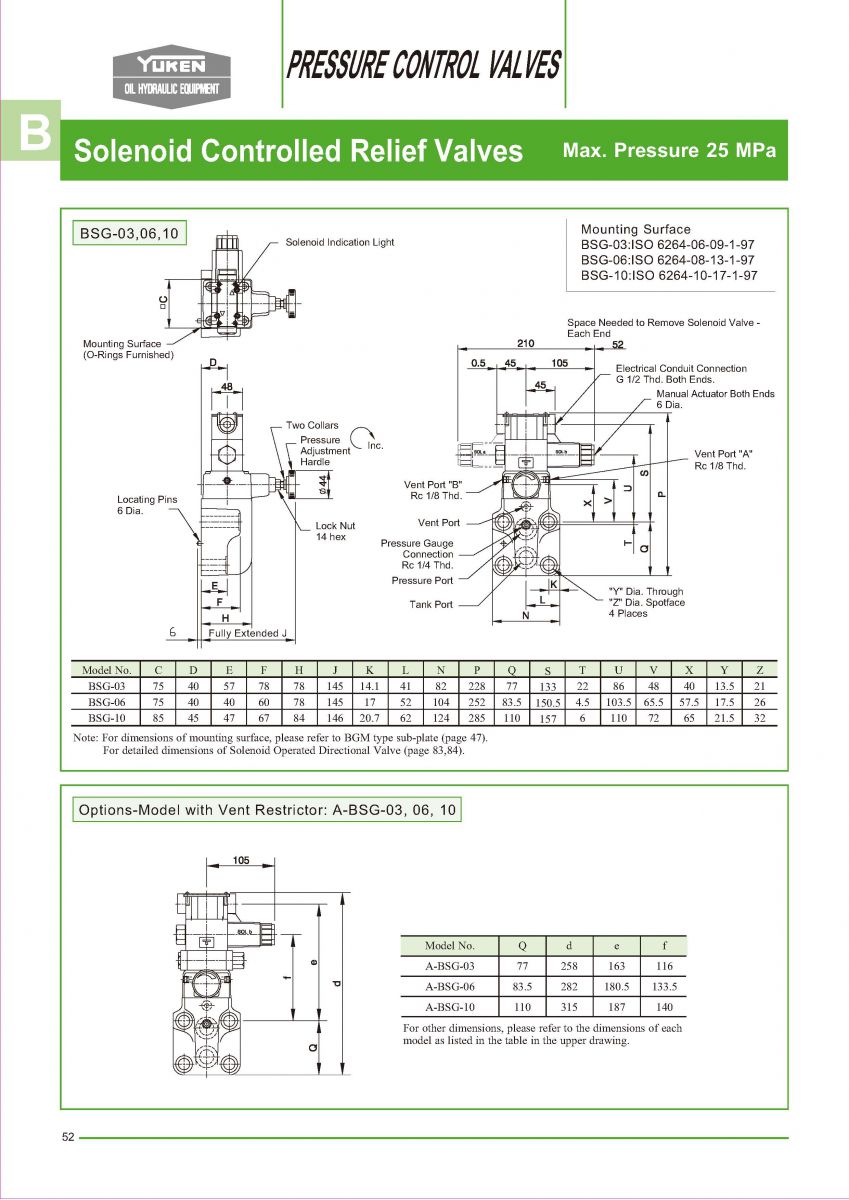

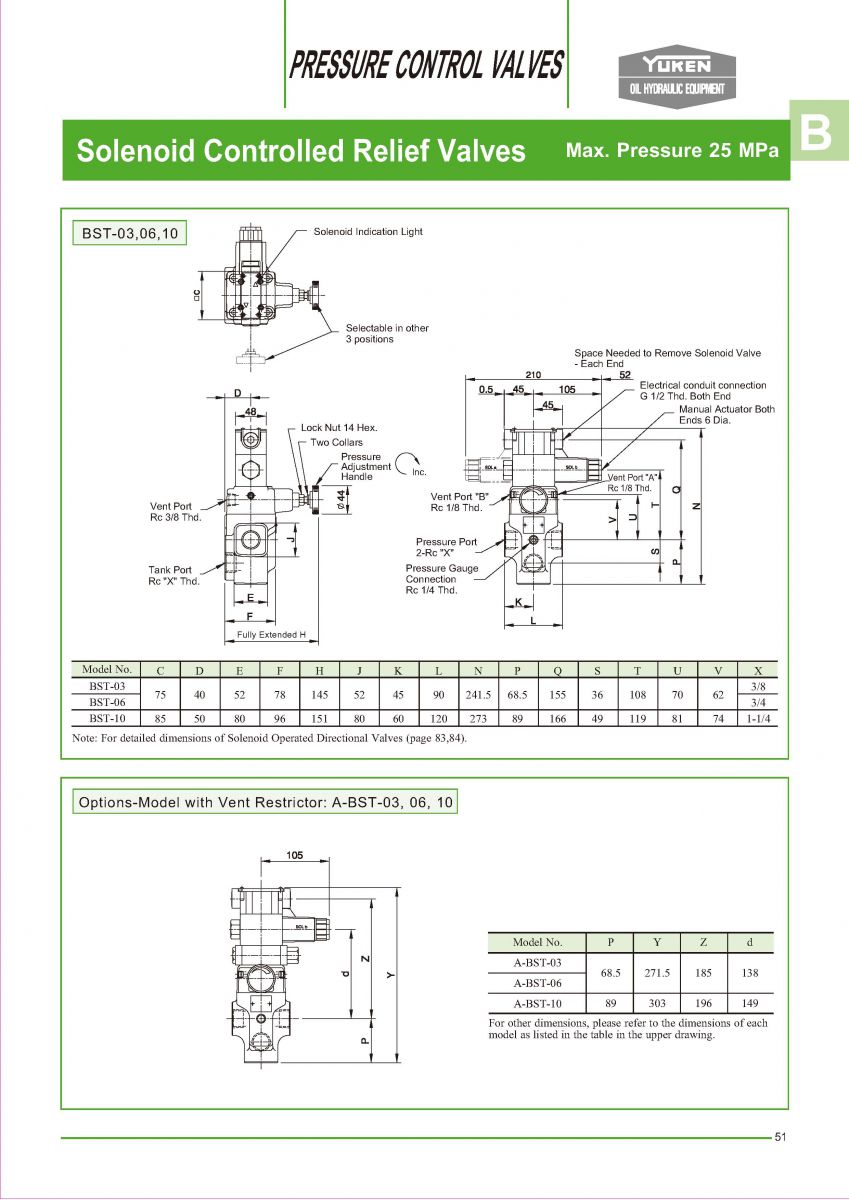

Measurement 尺寸
