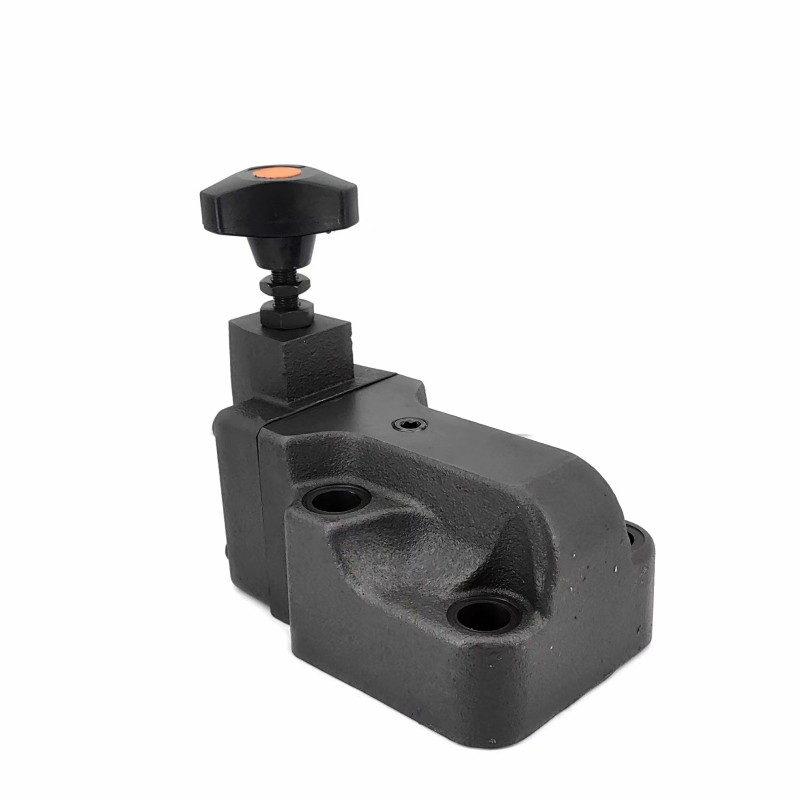

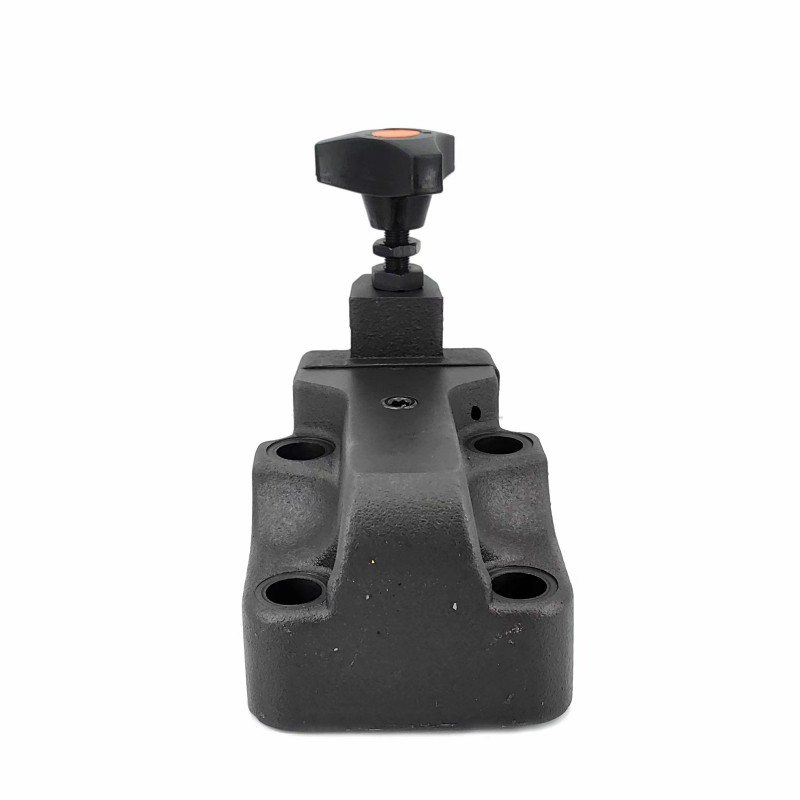

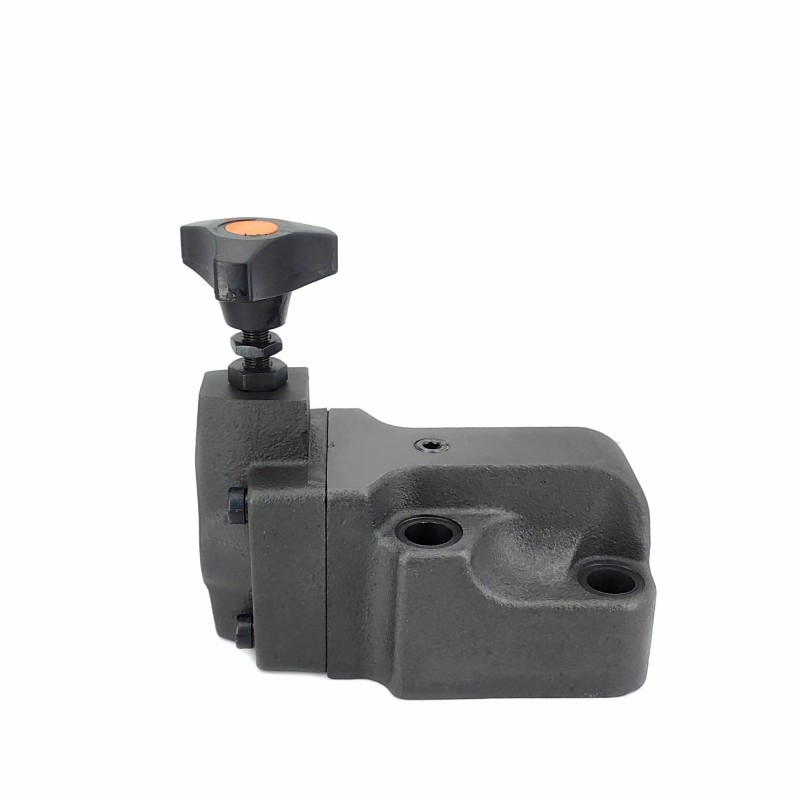

The BG series pilot operated relief valves are designed with a pilot operated design for extremely low noise, to maintain stable pressure in the system, and to achieve remote control and unloading.
BG-03/06先导式溢流阀保护泵和控制阀以免超压,且能使液压系统保持恒定压力利用卸荷(远程控制)口可对阀实行远程控制和卸荷。
Specification 型号说明
| BG | 06 | 3 |
|---|---|---|
| Pilot Operated Relief Valves 先导式溢流阀 | Port 油口尺寸 | Pressure control range 压力调整范围（巴） |
| G:Plate 板式 | 03 : 3/8" 06 : 3/4" 10: 1-1/4" | 1: 7-70 2 : 35-140 3 : 70-250 |
Technical Data 技术数据
Type 型号 | Max. pressure 最大压力（巴） (bar) | Pressure Control range 压力调整范围 (bar) | Max. flow 最大流量（升/分钟） (LPM) | Weight 重量 (kg) |
|---|---|---|---|---|
| BG-03-※ | 250 | 1 : 7-70 2 : 35-140 3 : 70-250 | 100 | 5.4 |
| BG-06-※ | 200 | 6.8 | ||
| BG-10-※ | 400 | 10.5 |
Attachment 附件
| Type | Safety screw 螺丝 |
|---|---|
| BG-03 | M12X95L……2pcs |
| BG-06 | M16X80L……2pcs |
| BG-10 | M20X90L……2pcs |
Model No. 型号
BG-03,BG-06,BG-10,BT-03,BT-06,BT-10

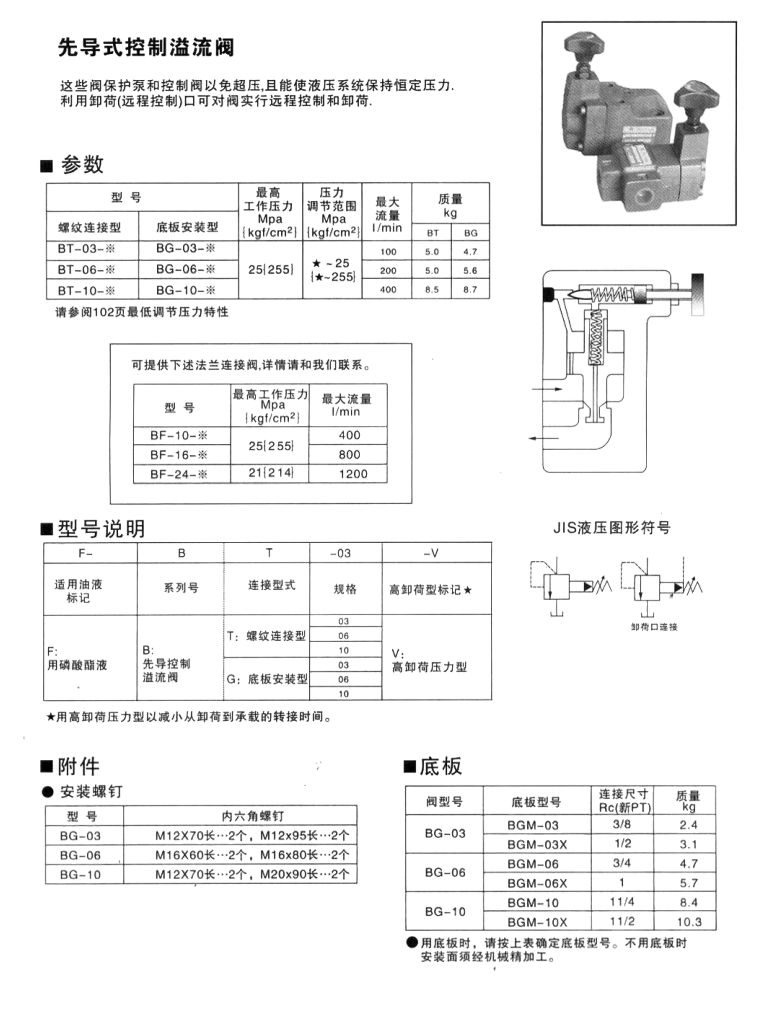

Model Code 型号说明

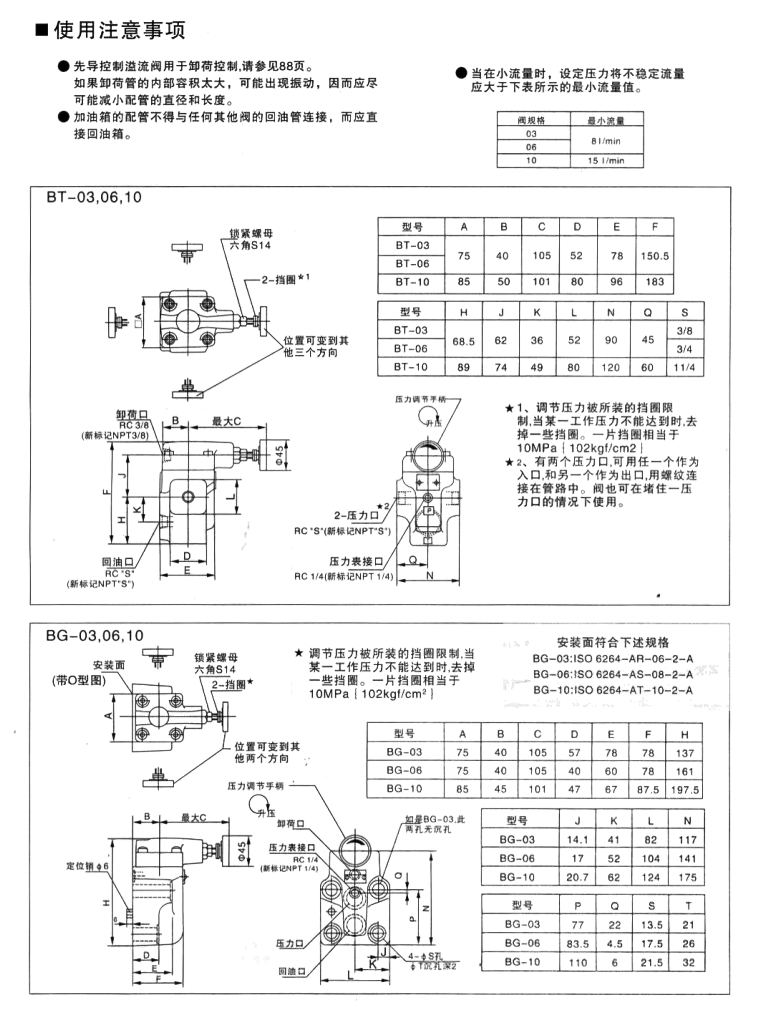

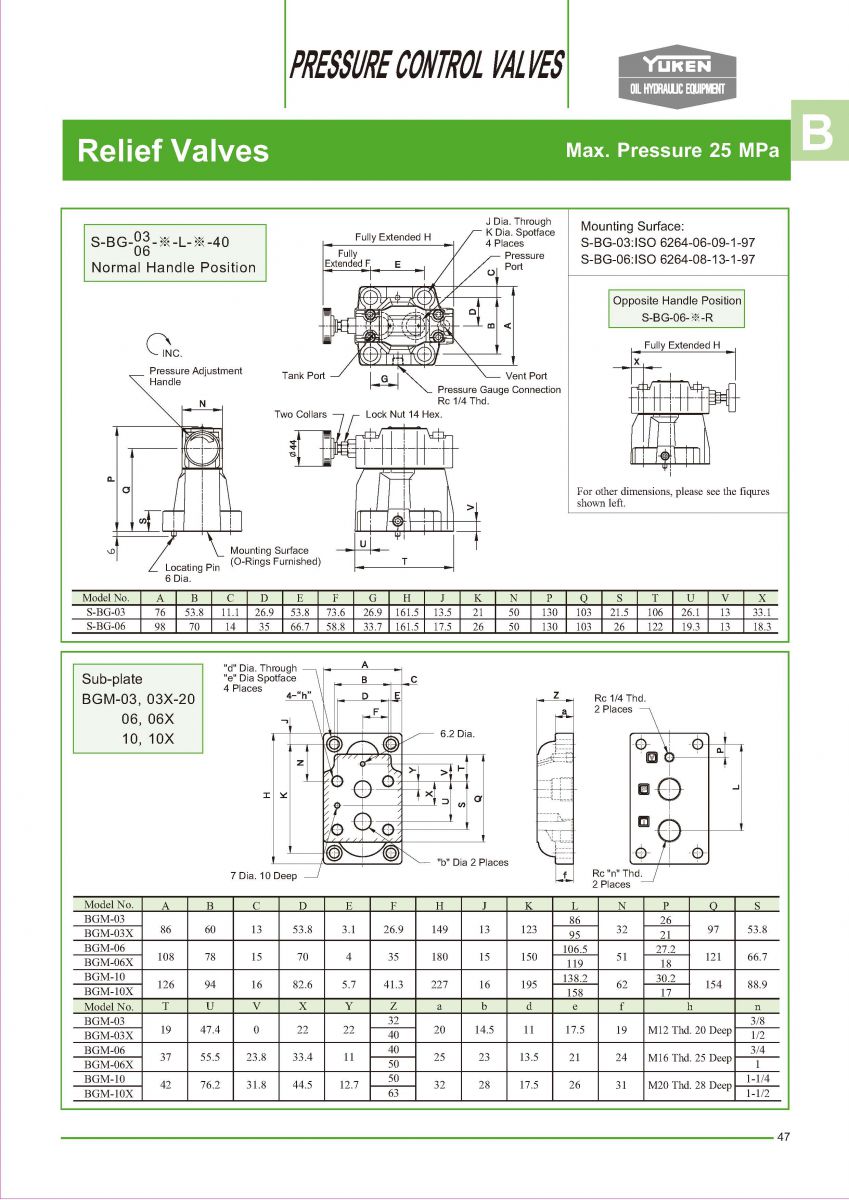

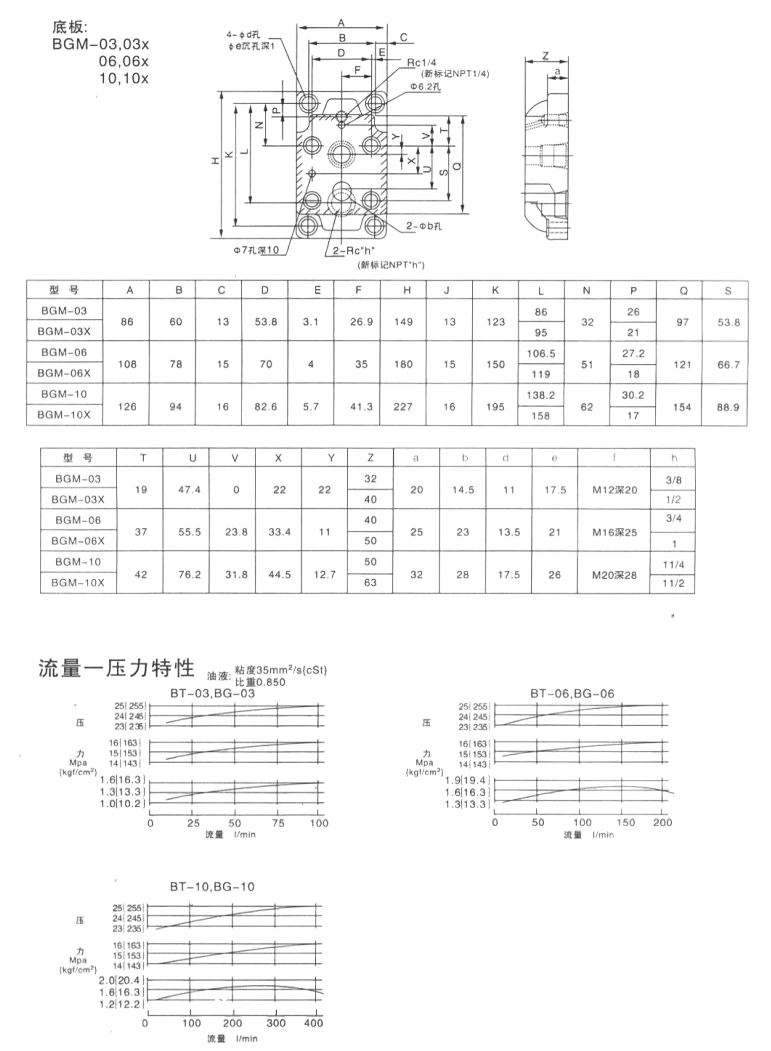

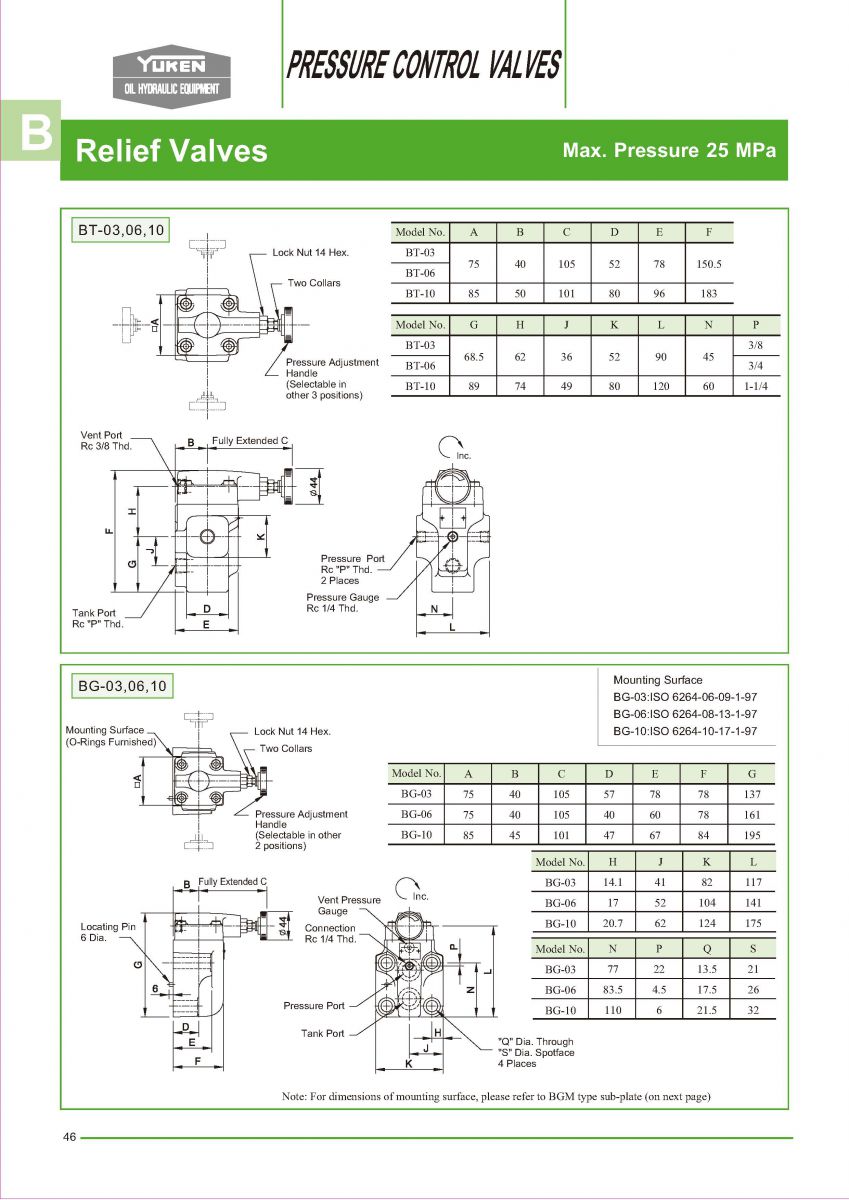

Measurement 尺寸
BG-03
BG-06,10
