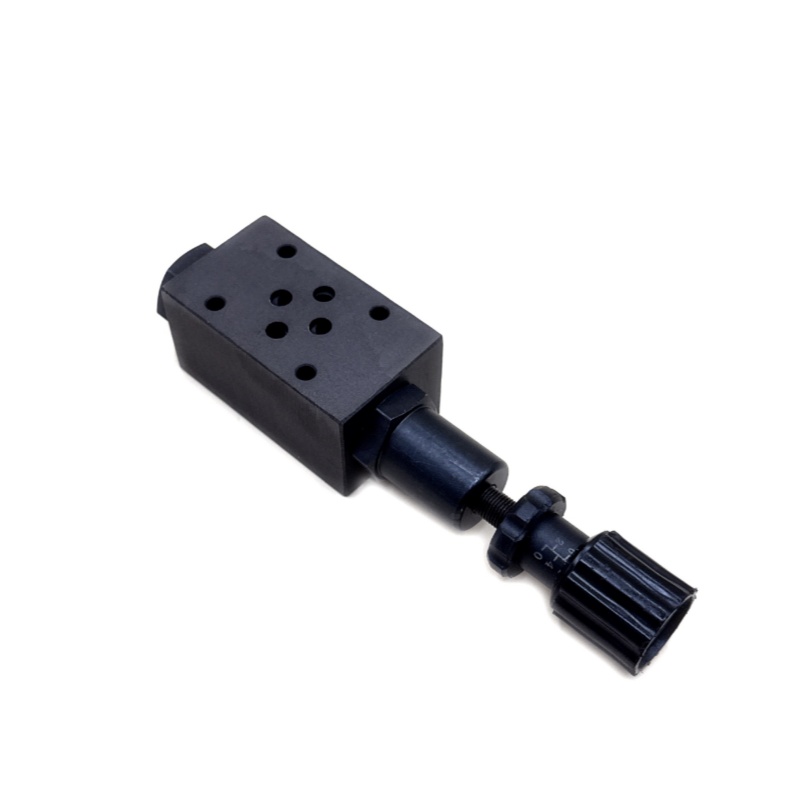

Modular Pressure Reducing Valve Series reduces the inlet pressure to a certain required outlet pressure through adjustment, and relies on the energy of the medium itself to automatically keep the outlet pressure stable. It is suitable for applications where a system requires different pressure outputs at the same time, and there is a requirement that two (or more) hydraulic circuits have the same pressure requirements.
叠加式减压阀系列通过调节将入口压力降低到一定的所需出口压力，并依靠介质本身的能量自动保持出口压力稳定。它适用于系统同时需要不同压力输出，并且要求两个（或多个）液压回路具有相同压力要求的应用场合。

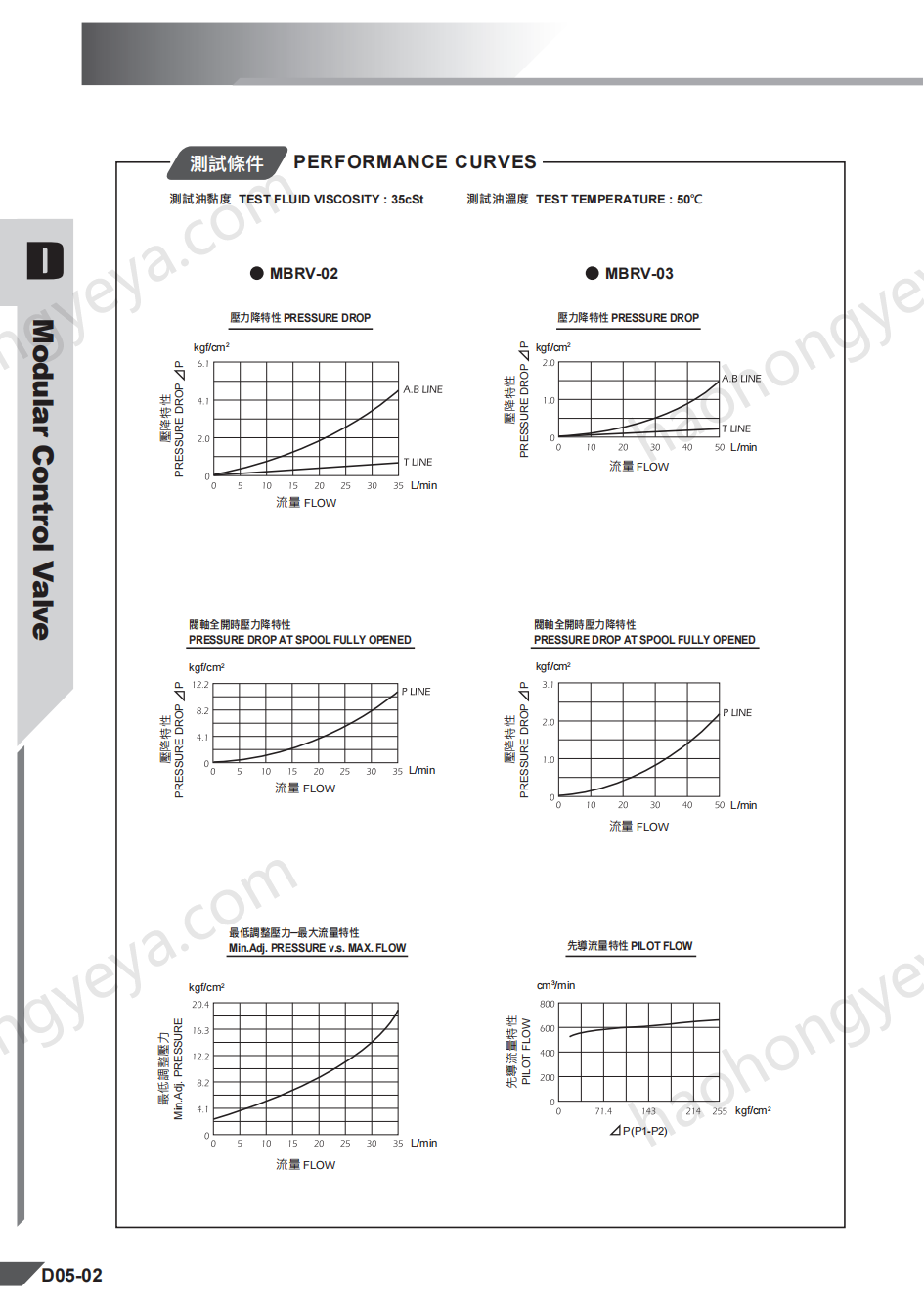

Specification 规格
| MBR | 02 | P | 1 | K | 2H | 50 | C |
|---|---|---|---|---|---|---|---|
Product Series 产品系列 | Port Size 油口信息 | Control Port 控制油口 | Pressure Adjusting Range (bar) 压力调整范围 | Adjusting Type 调压方式 | Screw length (mm) 螺钉长度（毫米） | Knob Direction 手轮方向 | Design No. |
Modular Reducing Valve Series 叠加式减压阀 | 02: 1/4" | P: P port A: A port B: B port | 1S: 1.5-35 1a: 26-31 1: 3-35 2: 8-70 3: 10-250 | K: Knob (Standard Type) M10: Without Knob | 2H: 126.7mm (none1S) 3H: 156.7mm (only1S) 4H: 186.7mm (only1S) | ＊ 02-A/P： 50: B Port Side 51: A Port Side * 02-B： 51: B Port Side 50: A Port Side | |
| 03: 3/8" | 1: 8-70 2: 8-140 3: 10-250 | K: Knob (Standard Type) | - | 50: B Port Side |
Model No.型号
MBR-02-A-1-K-50-C, MBR-02-B-1-K-50-C, MBR-03-P-3-K-50-C, MBR-03-A-3-K-50-C, MBR-03-B-3-K-50-C

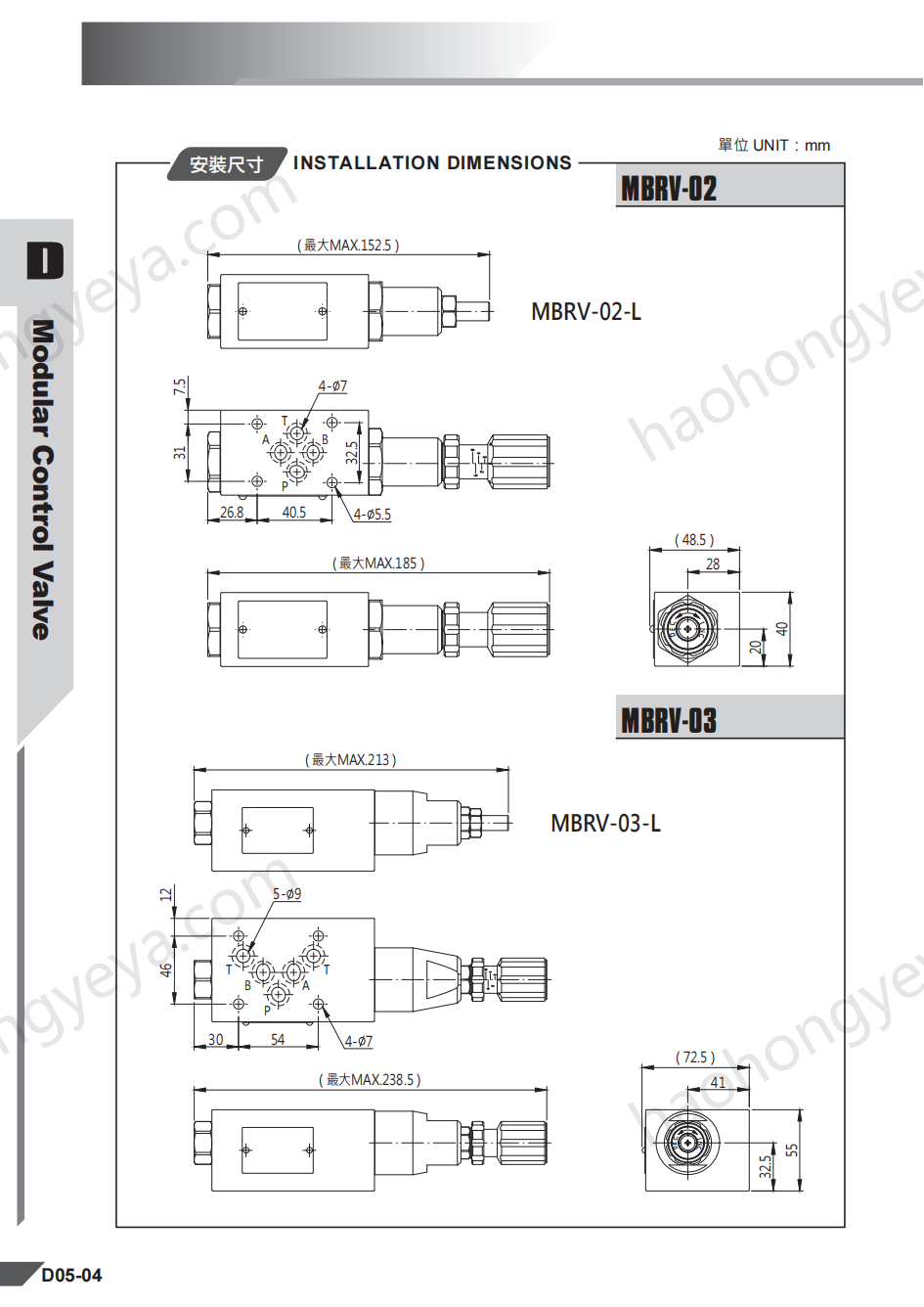

Conversion Table:转换表
| Model | Size | ISO | CETOP | NFPA | DIN | |
|---|---|---|---|---|---|---|
| 02 | 1/4" | 6mm | ISO 03 | CETOP 3 | D03 | NG 6 |
| 03 | 3/8" | 9mm | ISO 05 | CETOP 5 | D05 | NG 10 |

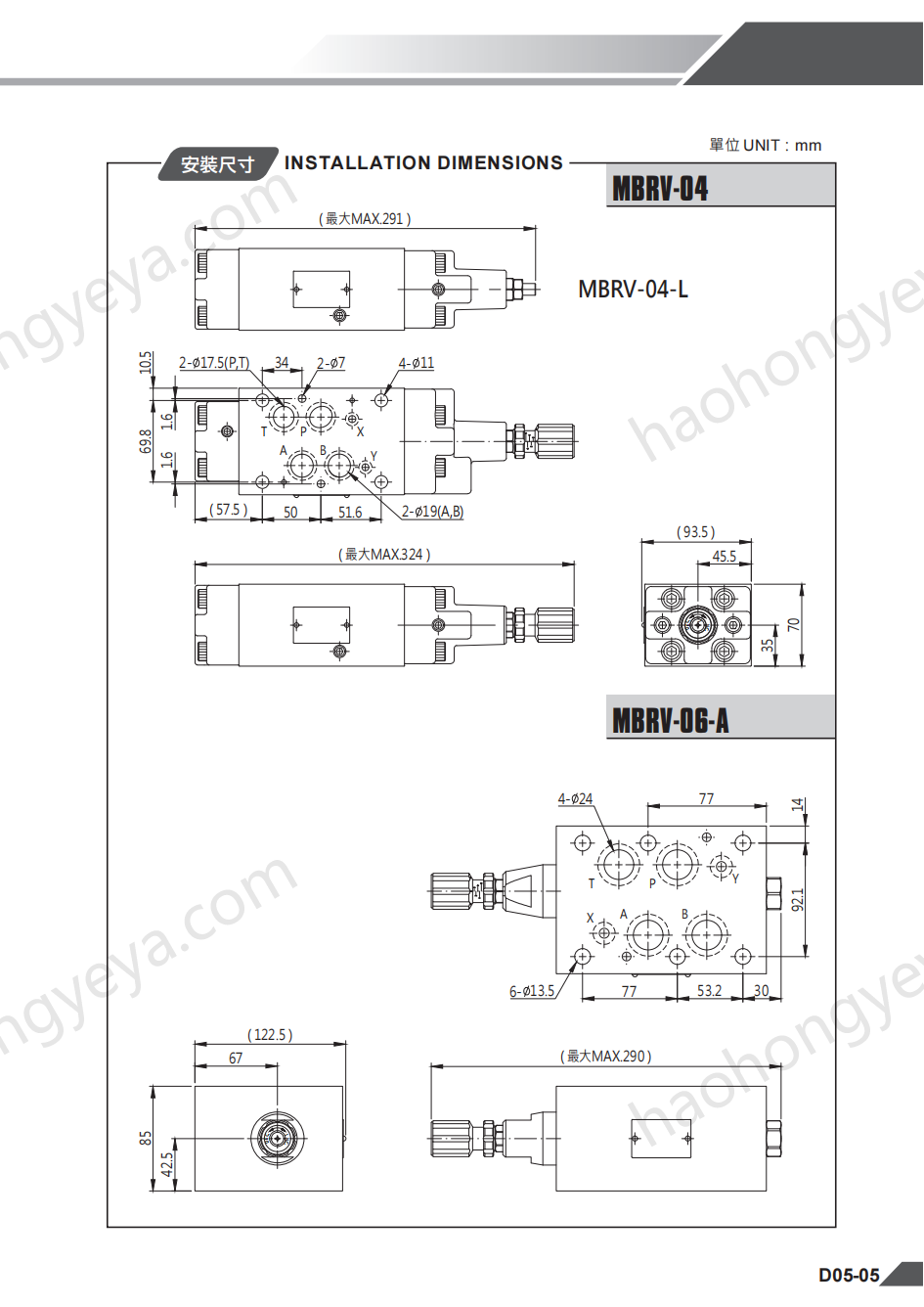

Model Code 型号代码
