Modular Relief Valve (MRV) is a pressure safety device that prevents the pump from overloading. When the system pressure goes higher than the set value, Modular Relief Valve (MRV) will lead exceeding hydraulic oil back into the tank. Keep the system stable, so as to ensure that the system will not cause accidents due to excessive pressure.
MRV叠加式溢流阀 是一种压力安全装置，可防止泵过载。当系统压力高于设定值时，叠加式溢流阀 (MRV) 会将超压的液压油导回油箱。保持系统稳定，确保系统不会因压力过高而引发事故。
Specification 型号说明
| MRV | 02 | P | 1 | K | 50 | C |
|---|---|---|---|---|---|---|
Product Series 产品名称 | Port Size 油口尺寸 | Control Port 控制油口 | Pressure Adjusting Range (bar) 压力调整范围（巴） | Adjusting Type 调整类型 | Knob Direction 手轮方向 | Design No. |
Modular Relief Valve 叠加式溢流阀 | 02: 1/4" | P: P port A: A port B: B port | 1: 8-70 2: 8-140 3: 10-250 | K: Knob (Standard Type) 手轮调压 | 50: B Port Side 51: A Port Side (Only for P control Port) | |
| 03: 3/8" | 50: B port side |
Model No.型号说明
MRV-02-B-3-K-50-C, MRV-02-P-3-K-50-C, MRV-03-A-3-K-50-C, MRV-03-B-3-K-50-C, MRV-03-P-3-K-50-C
Conversion Table:转换表
| Model | Size | ISO | CETOP | NFPA | DIN | |
|---|---|---|---|---|---|---|
| 02 | 1/4" | 6mm | ISO 03 | CETOP 3 | D03 | NG 6 |
| 03 | 3/8" | 9mm | ISO 05 | CETOP 5 | D05 | NG 10 |
Model Code 型号代码

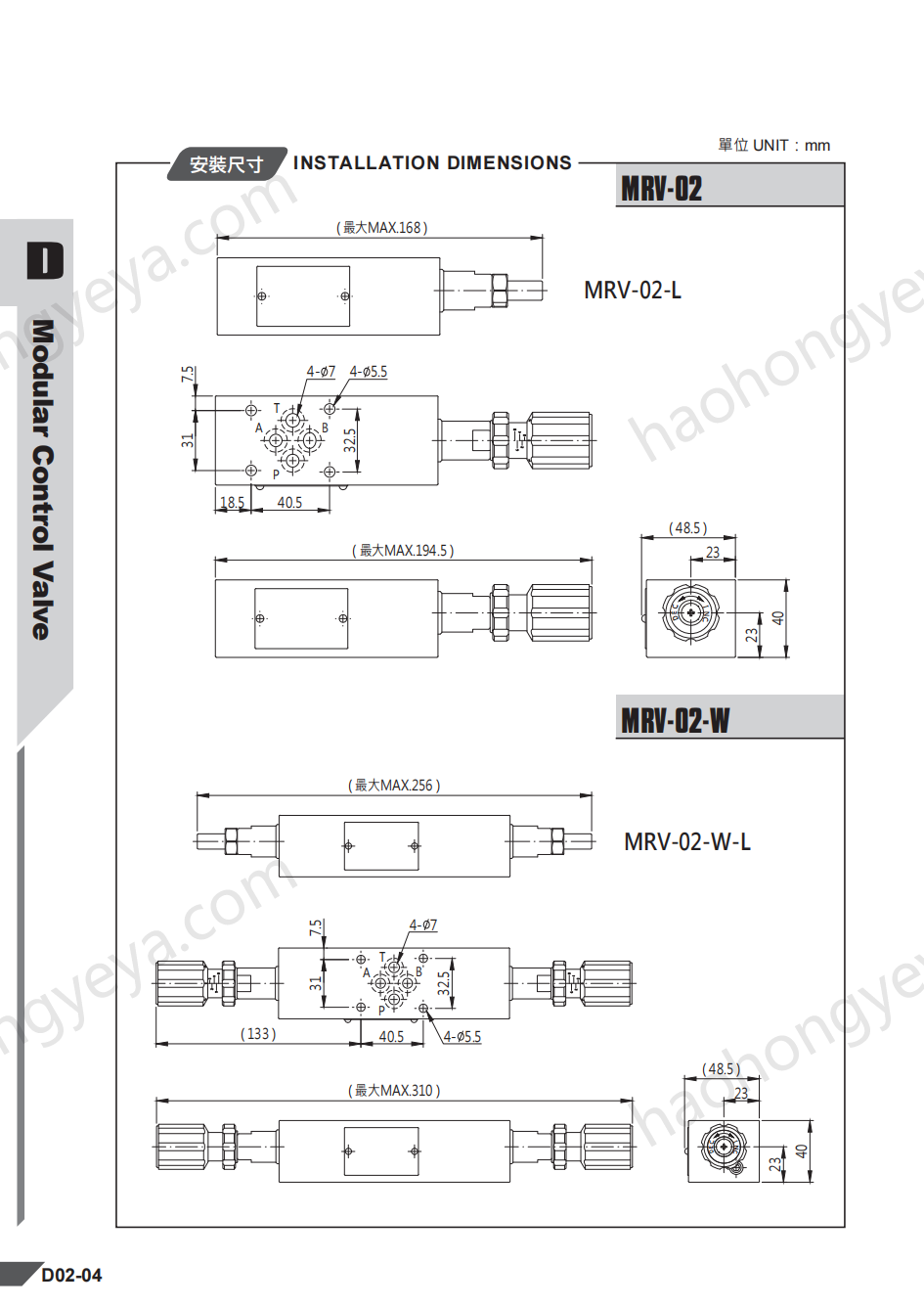

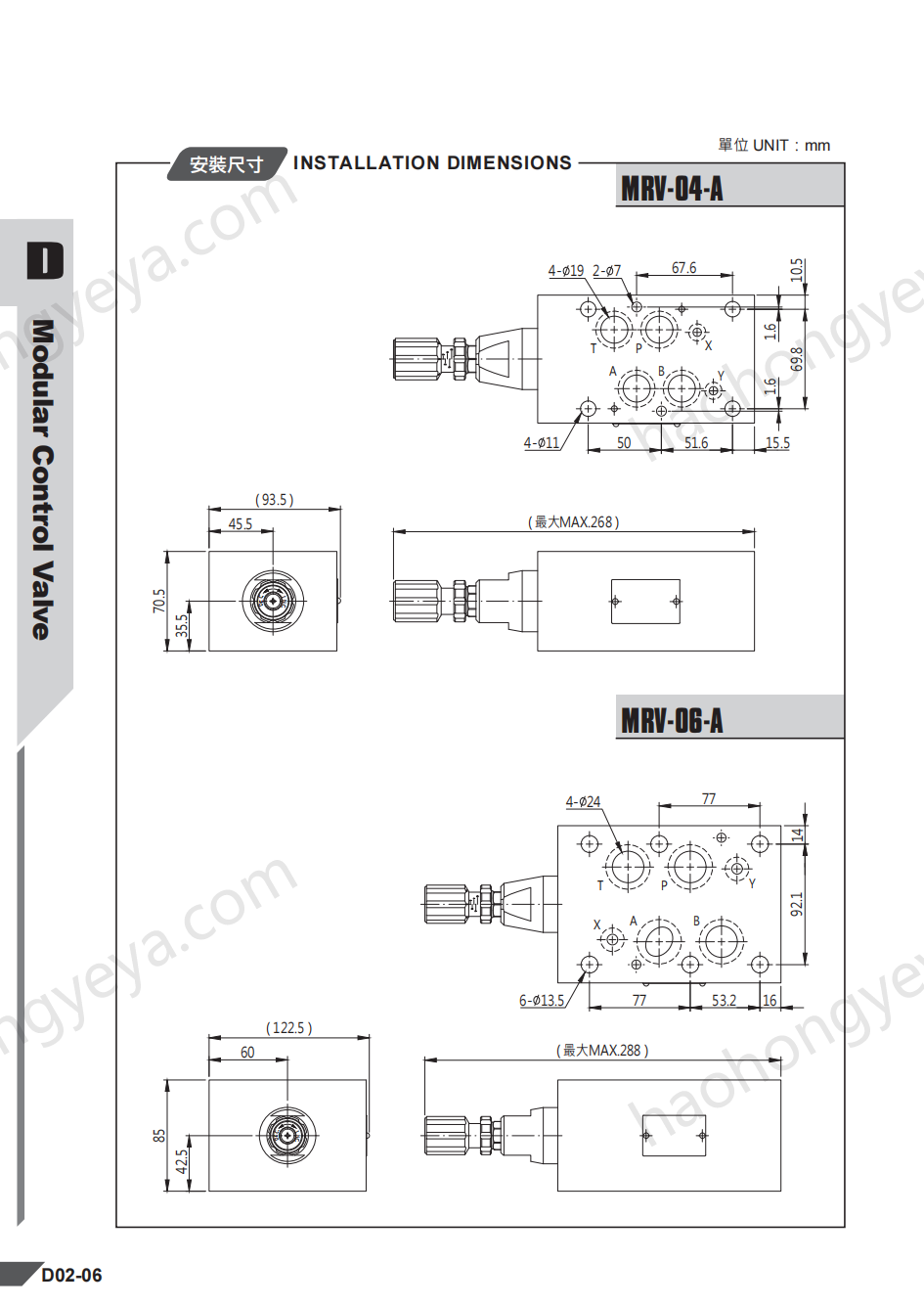

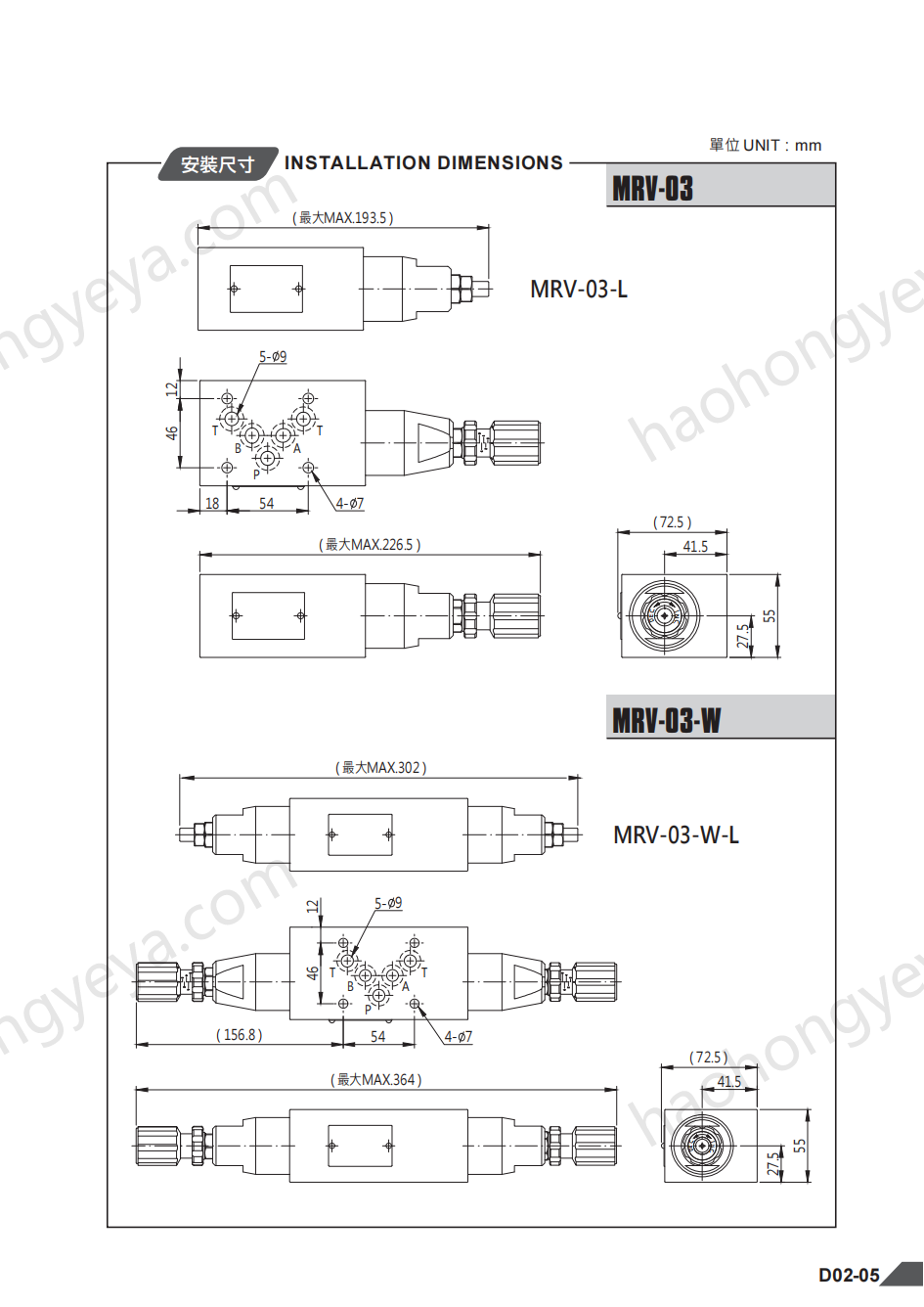

Measurement 尺寸
