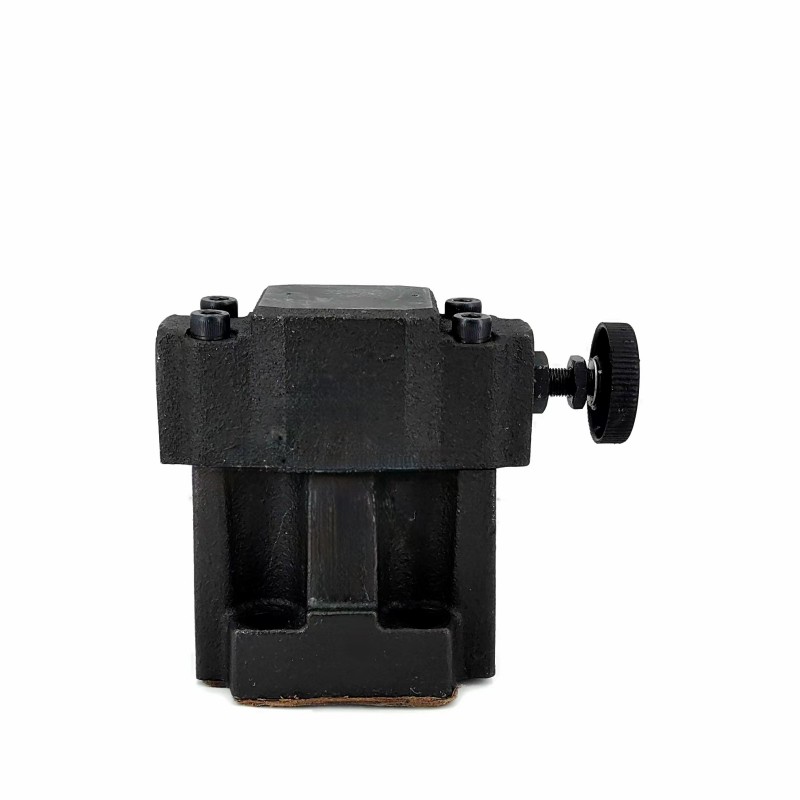

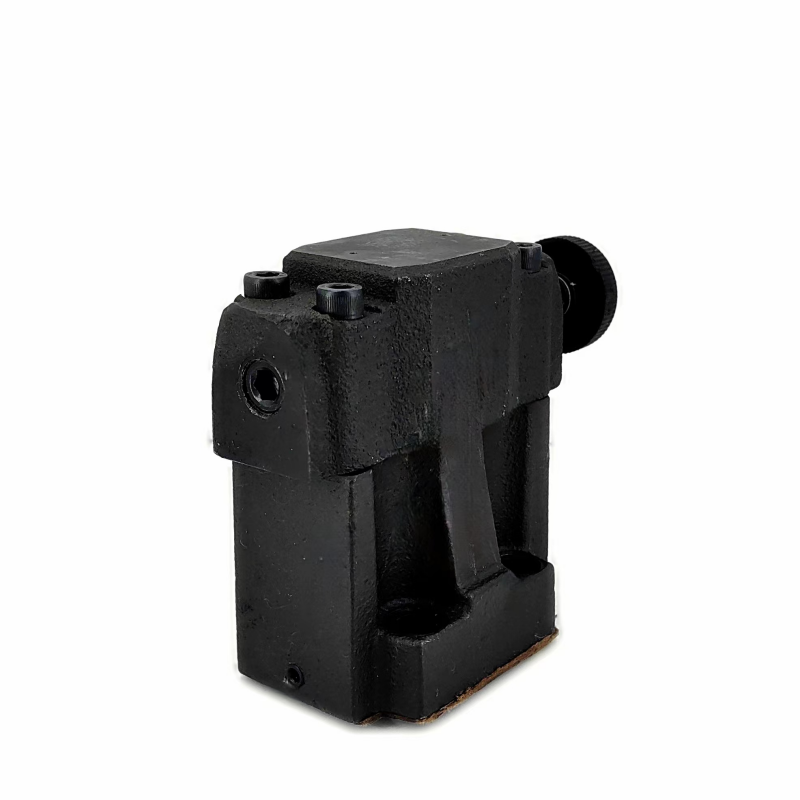

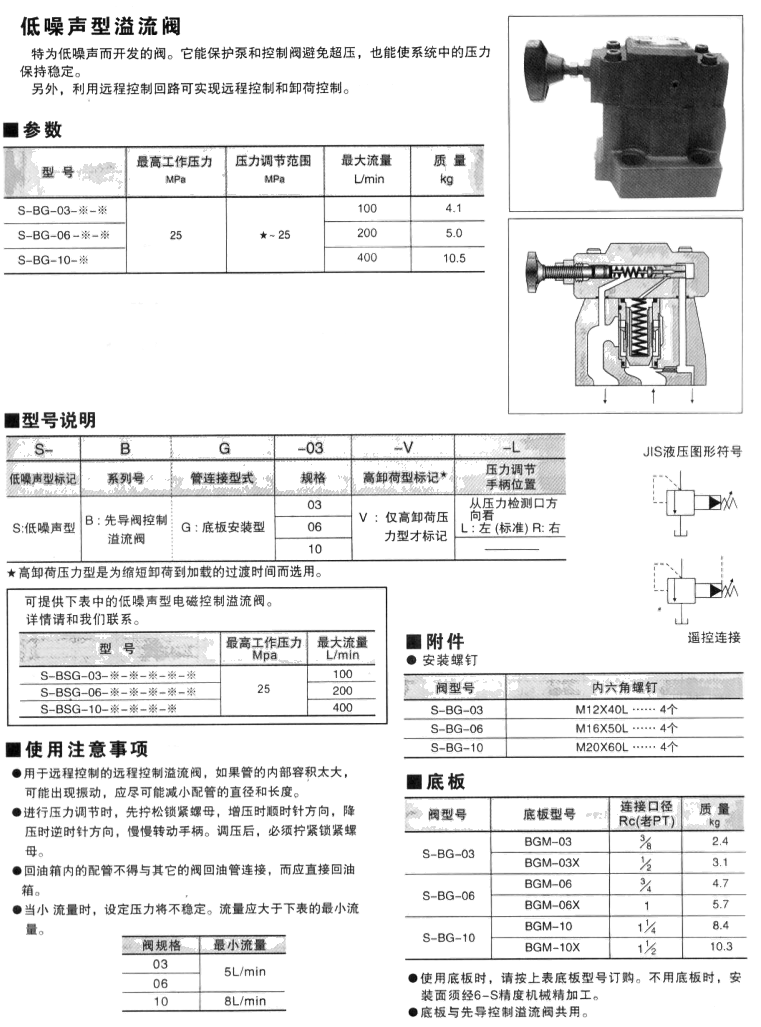

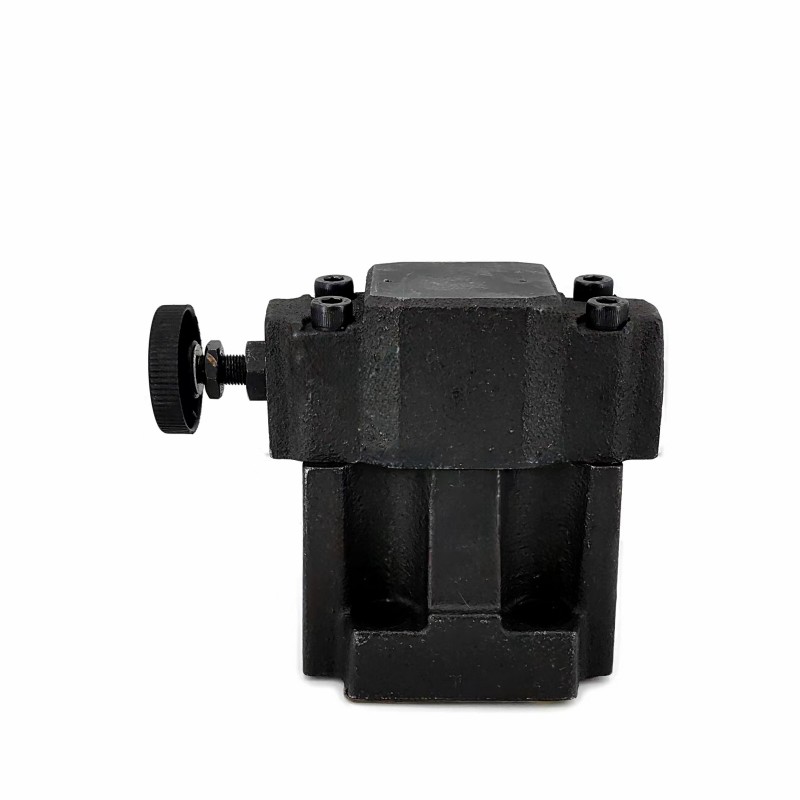

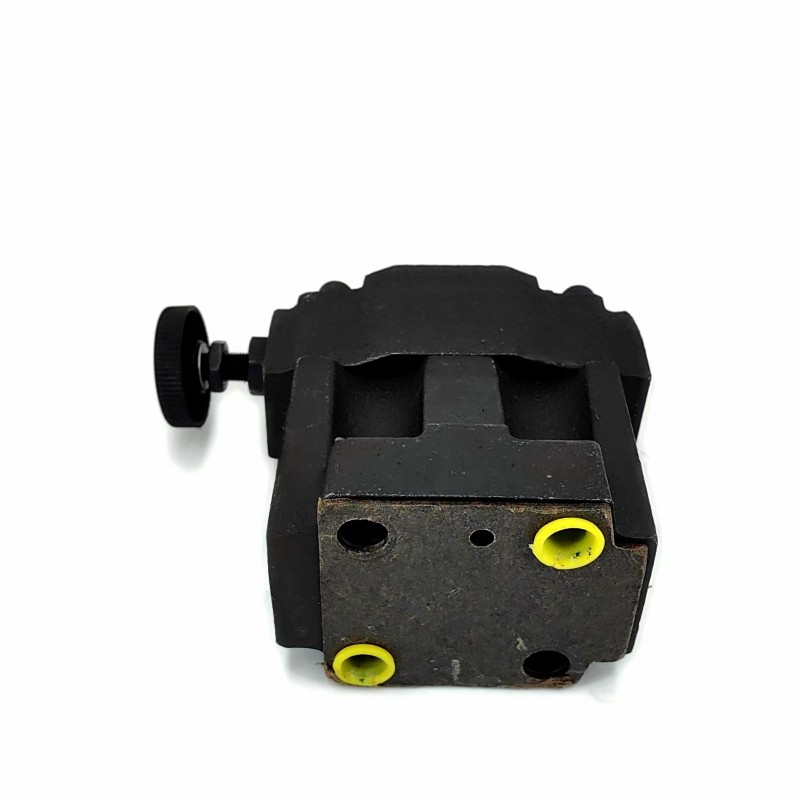

SBG系列低噪声溢流阀是特为低噪声而开发的阀。它能保护泵和控制阀避免超压，也能使系统中的压力保持稳定。另外，利用远程控制回路可实现远程控制和卸荷控制。

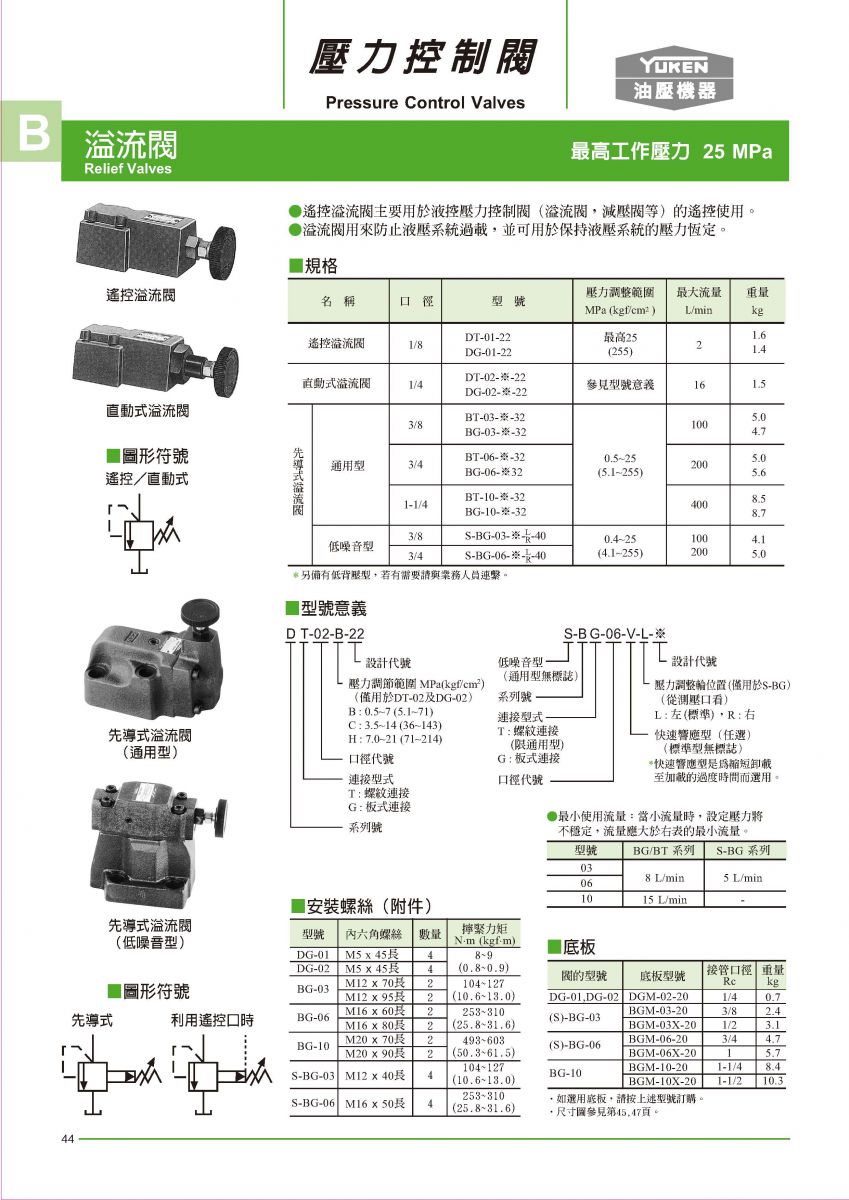

Specification 型号说明
| SB | G | 06 | 3 | R |
|---|---|---|---|---|
| Model 型号 | Installation Type 安装方式 | Port 油口螺纹 | Pressure Control range 压力控制范围 | Direction of handle 手柄方向 |
| SB | G:Plate 板式 | 03: 3/8" 06 : 3/4" 10: 1-1/4" | 1: 7-70 bar 2 : 35-140 bar 3 : 70-250 bar | R:Right(P Port Side) 进油侧 |

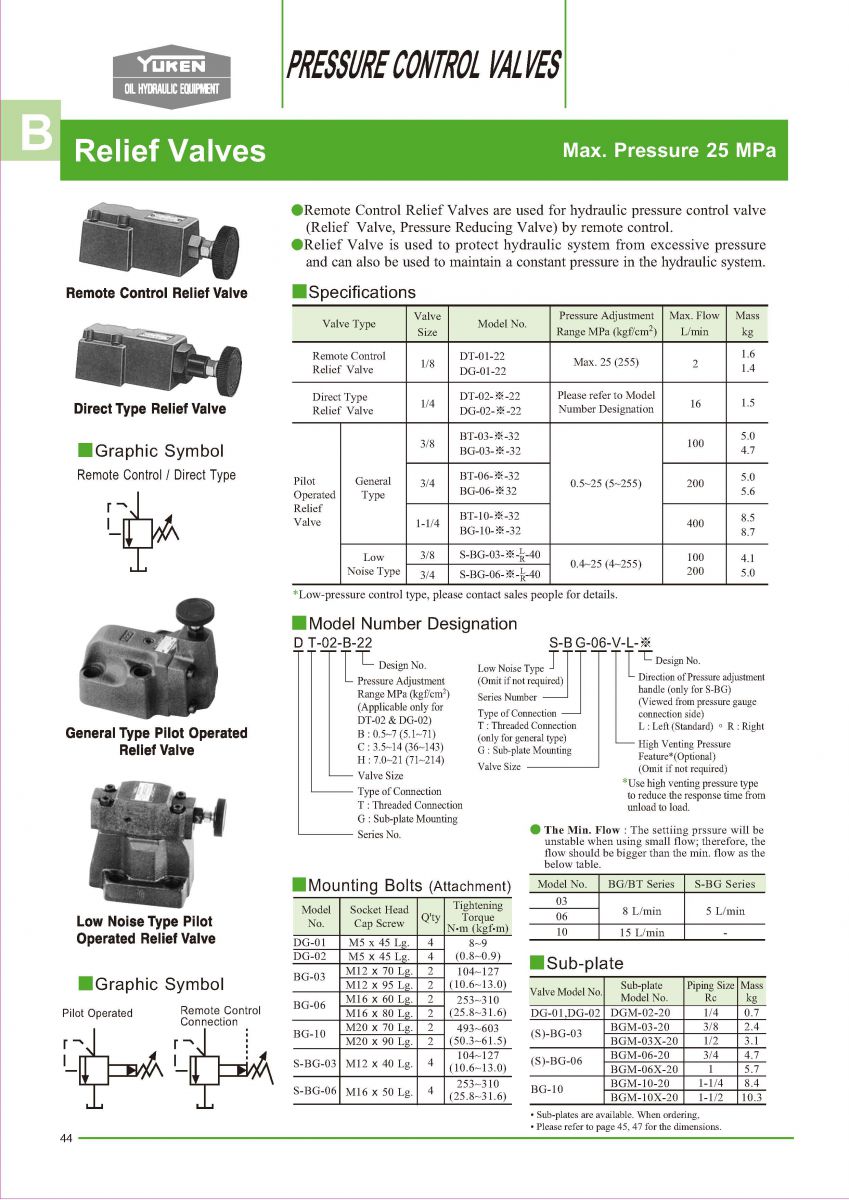

Technical Data 技术数据
| Type | Max. pressure 最大压力 (bar) | Pressure Control range 压力控制范围 (bar) | Max. flow 最大流量 (LPM) | Weight 重量 (kg) |
|---|---|---|---|---|
| SBG-03-※-※ | 250 | 1 : 7-70 2 : 35-140 3 : 70-250 | 100 | 4.8 |
| SBG-06-※-※ | 200 | 5.9 | ||
| SBG-10-※-※ | 400 | 11.3 |
Attachment 附件
| Type | Safety screw |
|---|---|
| SBG-03 | M12 x 40L…… 2pcs |
| SBG-06 | M16 x 45L…… 2pcs |
| SBG-10 | M20 x 60L…… 2pcs |

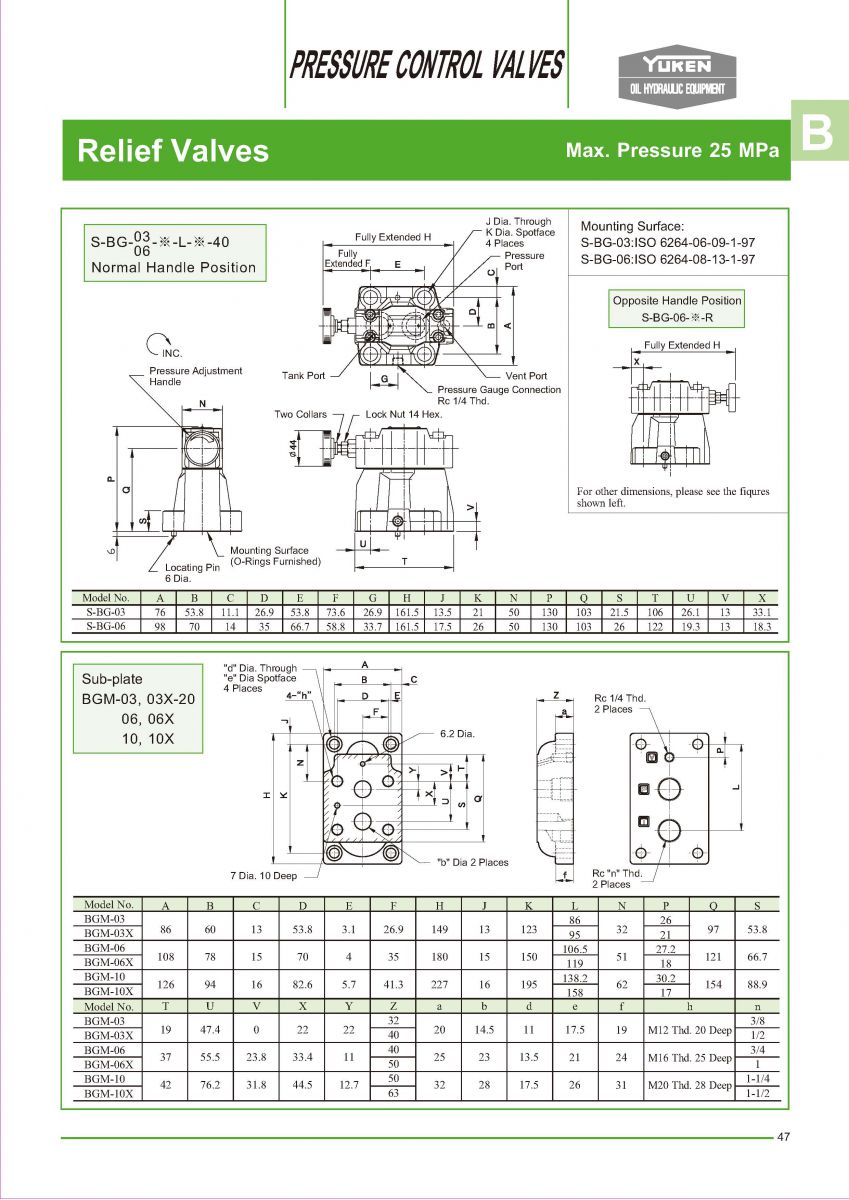

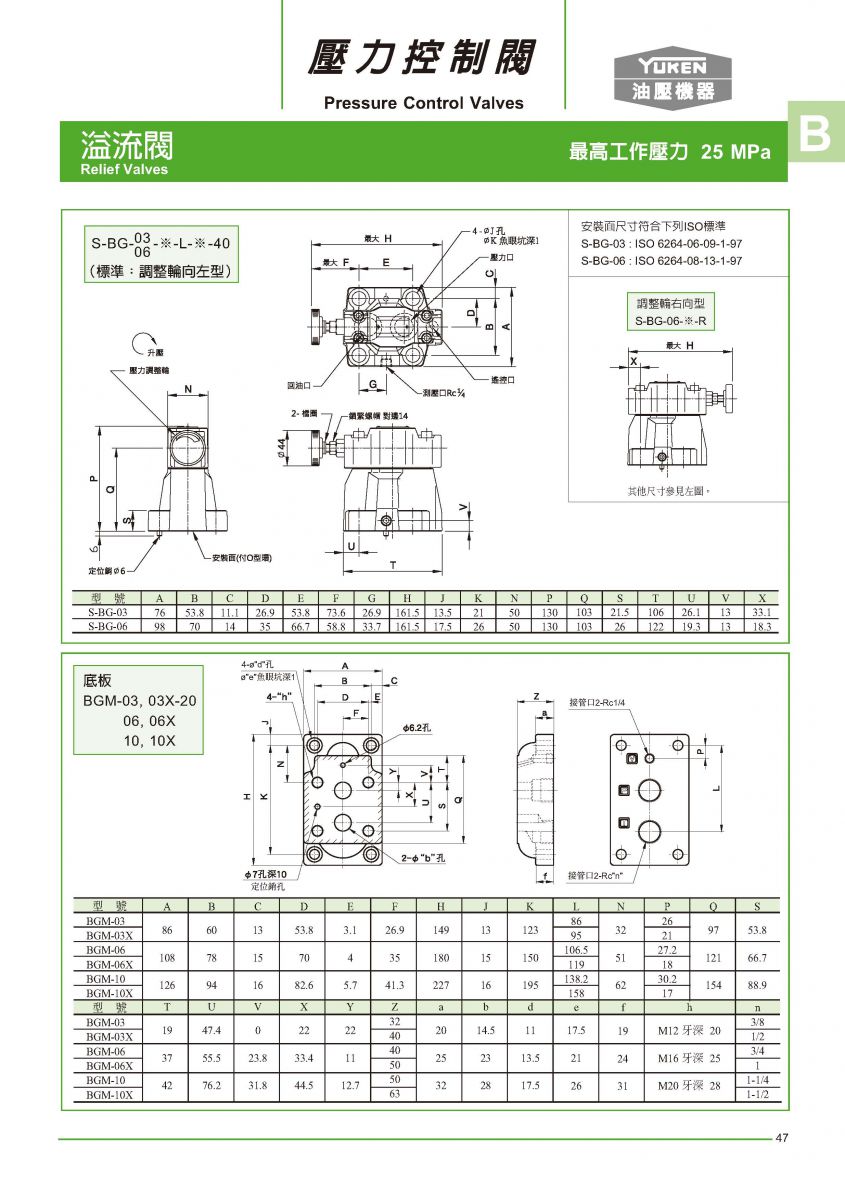

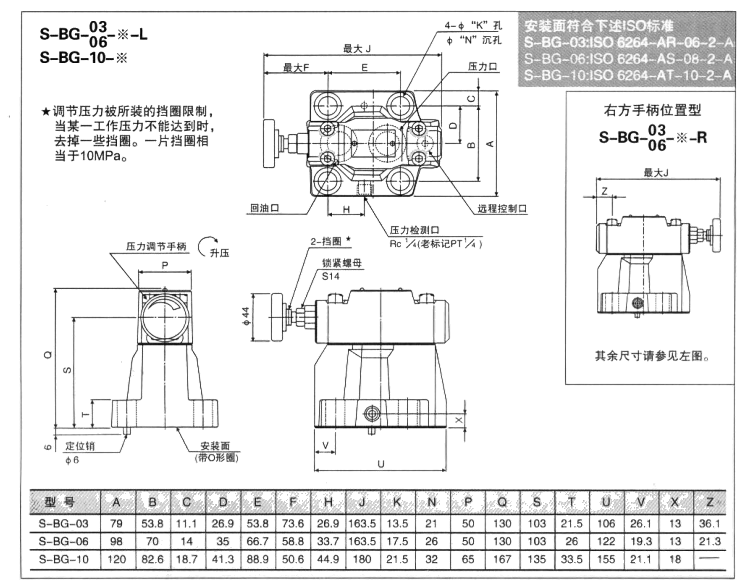

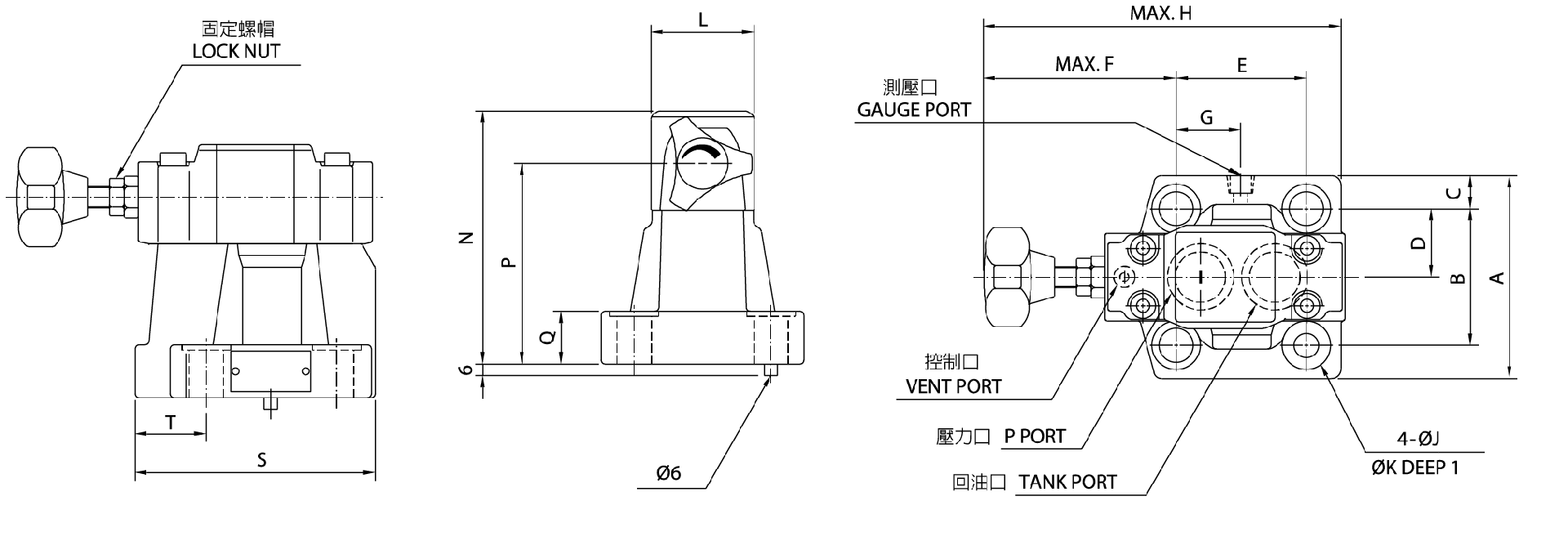

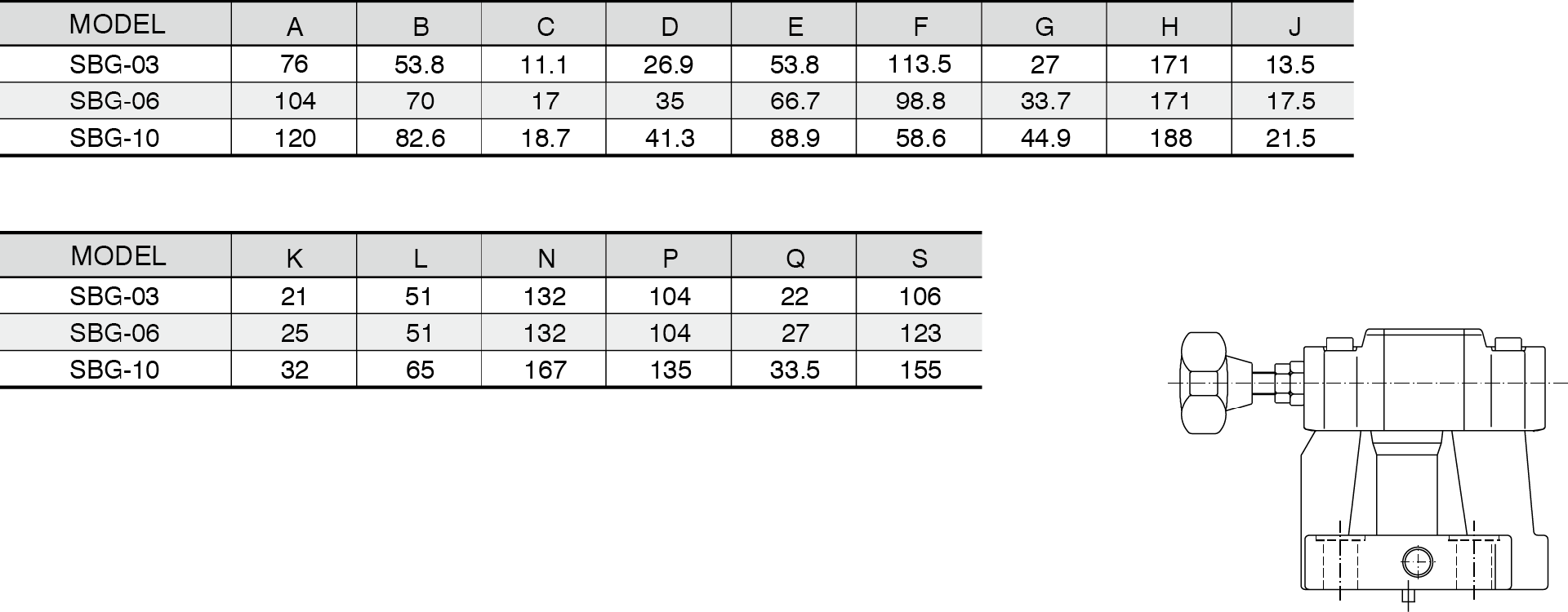

Model No.型号
SBG-03,SBG-06,SBG-10
Model Code
Instruction
Pressure adjustment: When adjusting the pressure, loosen the lock nut and slowly turn the handle, clockwise for higher pressure, counterclockwise for lower pressure, don't forget to tighten the fixing nut after the adjustment.
Oil return type: The oil return pipe of the direct and remote control type should not be connected with the oil return pipe of other valves, but should be directly returned to the oil tank. If the internal capacity of the return line is too large, frequent vibration is likely to occur. Therefore, the length and diameter of the piping should be reduced as much as possible.
Flow rate selection: When the flow rate is small, the adjustment pressure will be unstable. Therefore, when using caliber 03 and 06, the flow rate should be greater than 5 L/min, and when using caliber 10, the flow rate should be greater than 8 L/min.
●用于远程控制的远程控制溢流阀，如果管的内部容积太大，可能出现摄动，应尽可能减小配管的直径和长度。进行压力调节时，先拧松锁紧螺母，增压时顺时针方向，降压时逆时针方向，慢慢转动手柄。调压后，必须拧紧锁紧螺母。
●回油箱内的配管不得与其它的阀回油管连接，而应直接回油箱。
●当小 流量时，设定压力将不稳定。流量应大于下表的最小流量。
