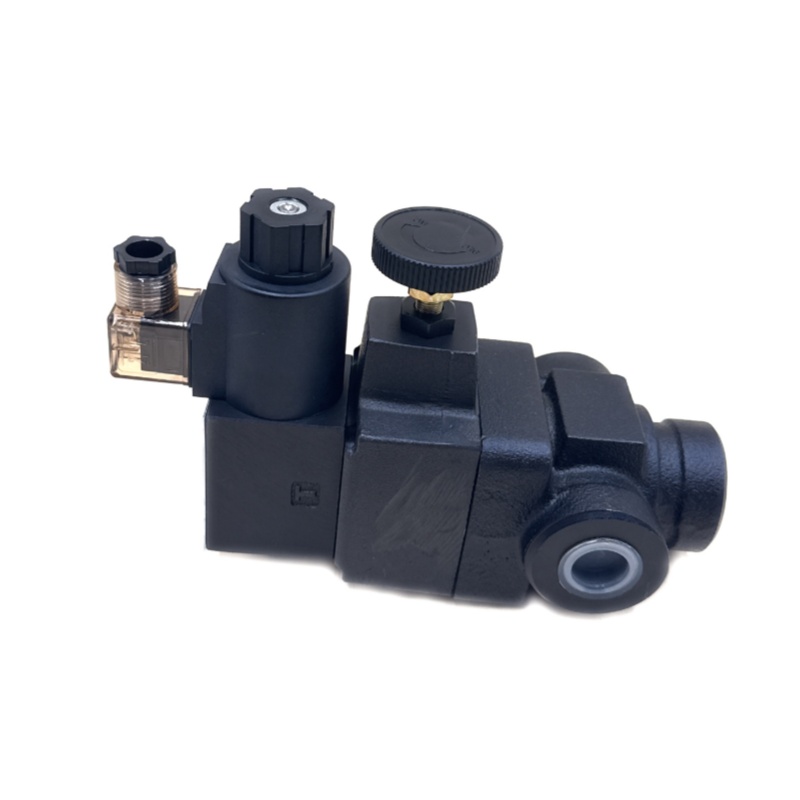

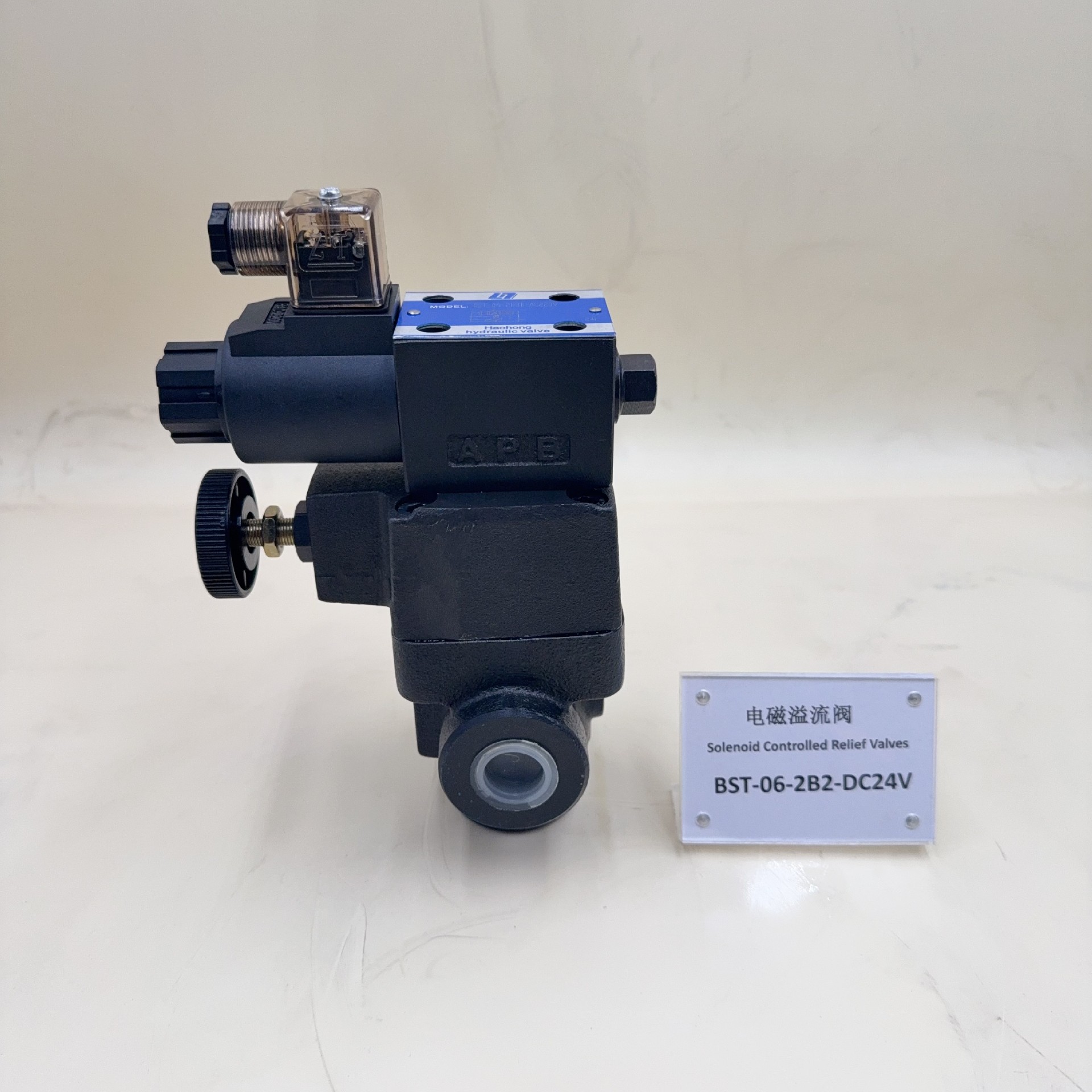

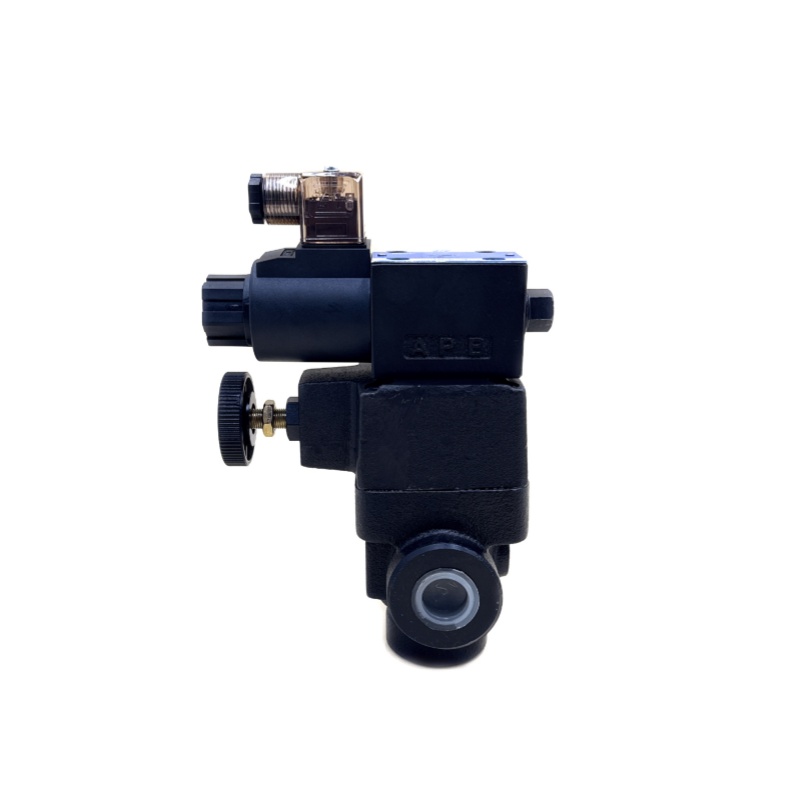

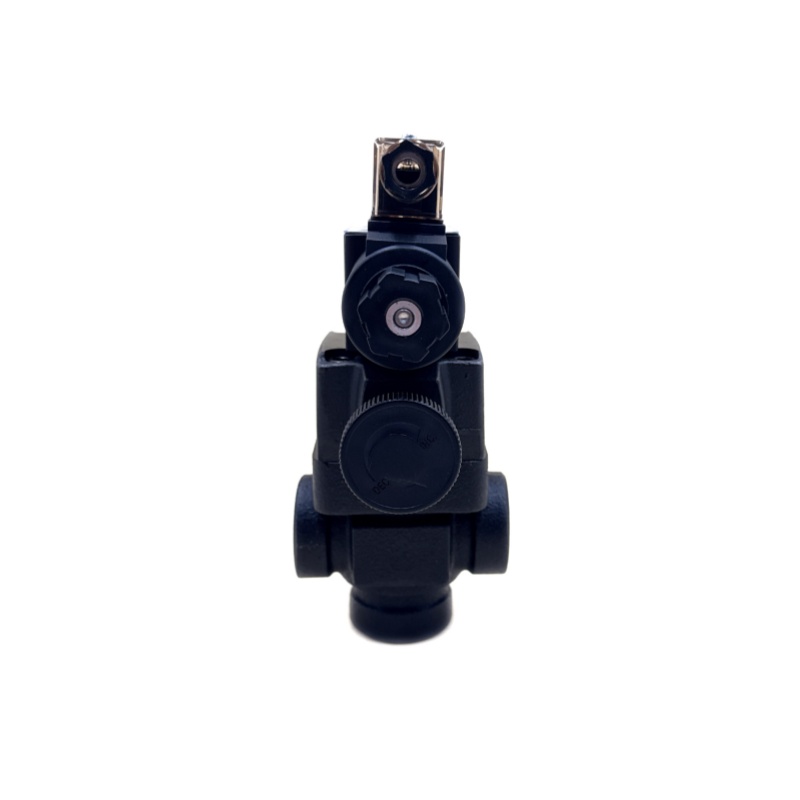

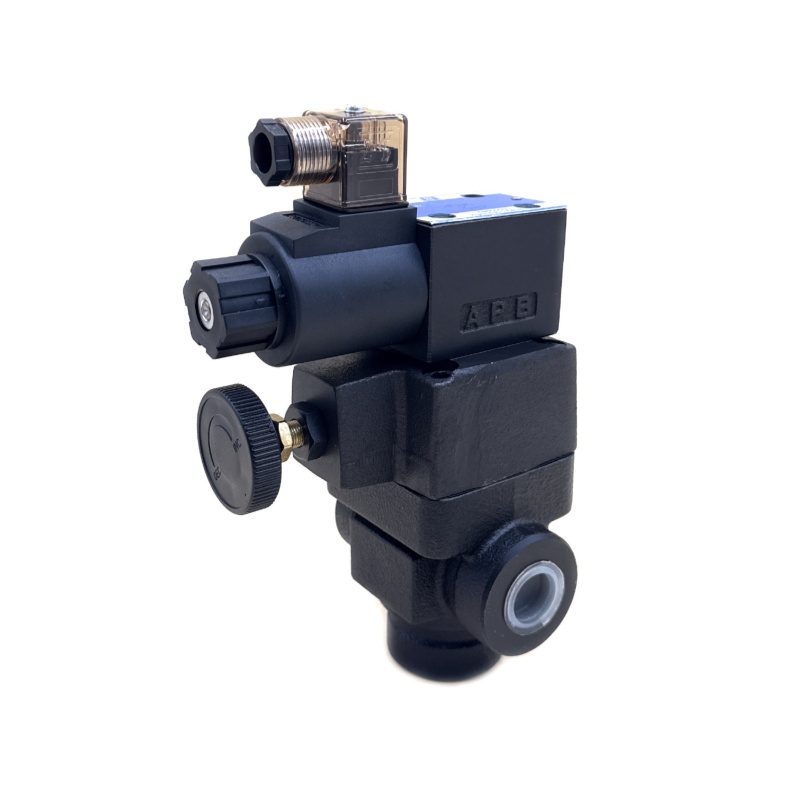

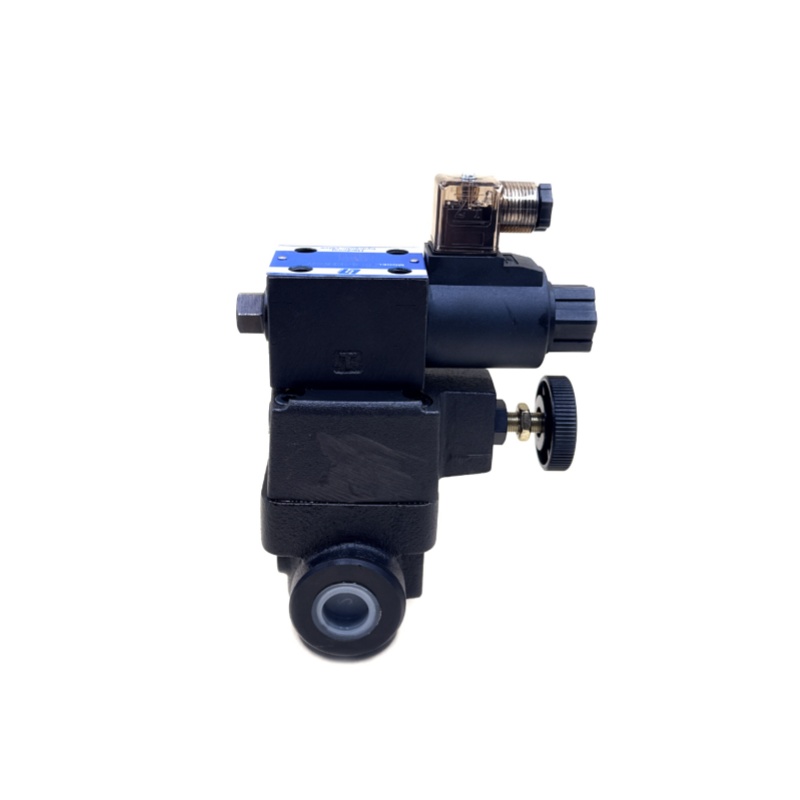

A combination of a relief valve and a solenoid directional valve. Since the solenoid valve is mounted directly on the relief valve and connected to the relief valve drain line, there is no piping between them. The pressure of the pump can be unloaded remotely by an electronic signal acting on the solenoid valve, or regulated by connecting a pilot relief valve to the solenoid valve port. This allows the system to be controlled by a variable or triple pressure.
溢流阀和电磁换向阀的组合。由于电磁阀直接安装在溢流阀上，并与溢流阀的卸油口相连，因此两者之间没有管道连接。泵的压力可通过作用在电磁阀上的电子信号远程卸载，或通过将先导溢流阀连接到电磁阀端口进行调节。这样，系统就可以通过可变压力或三重压力进行控制。

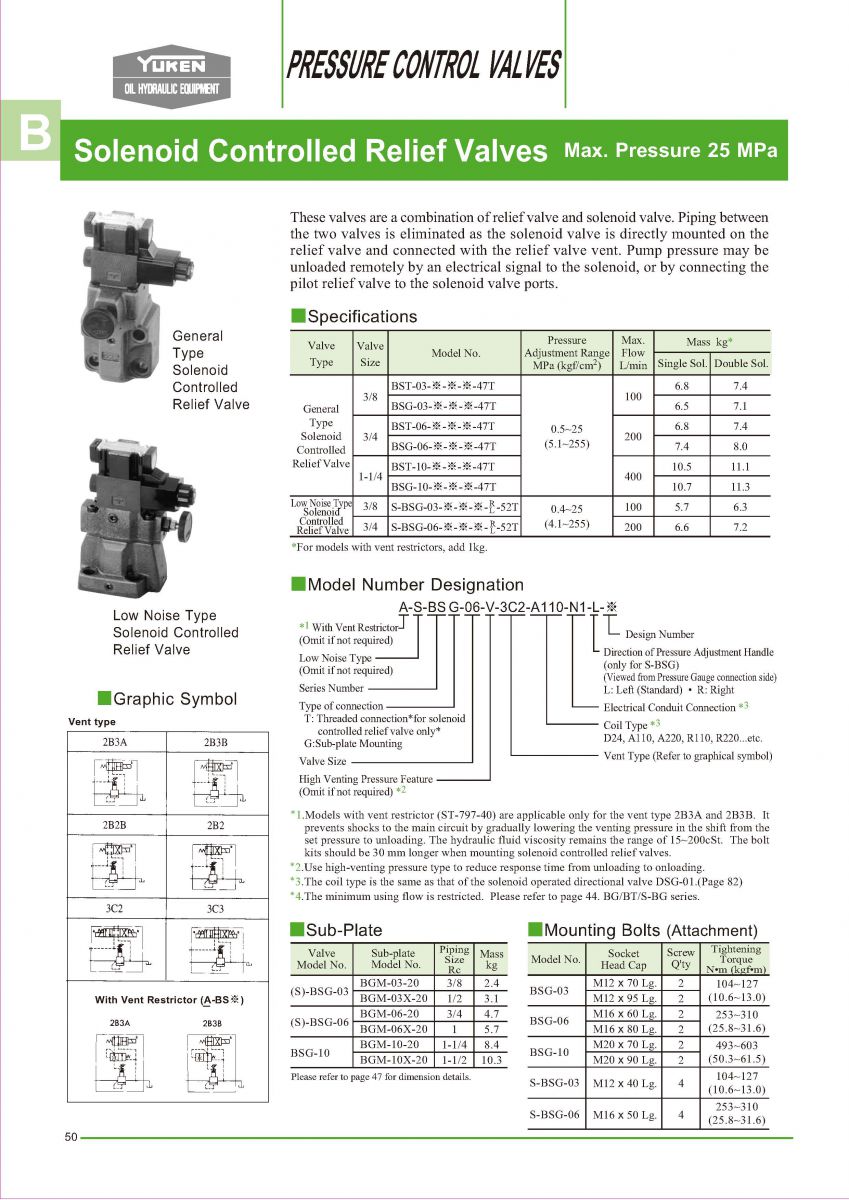

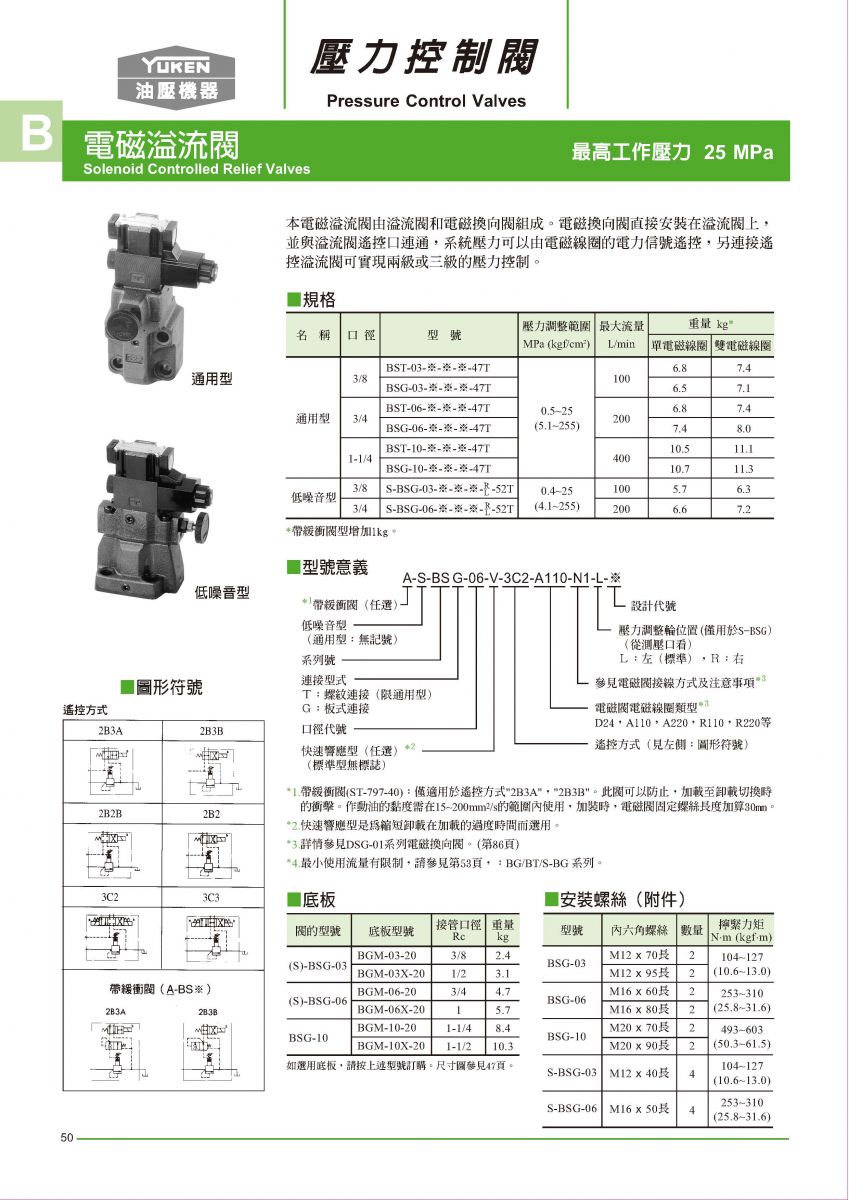

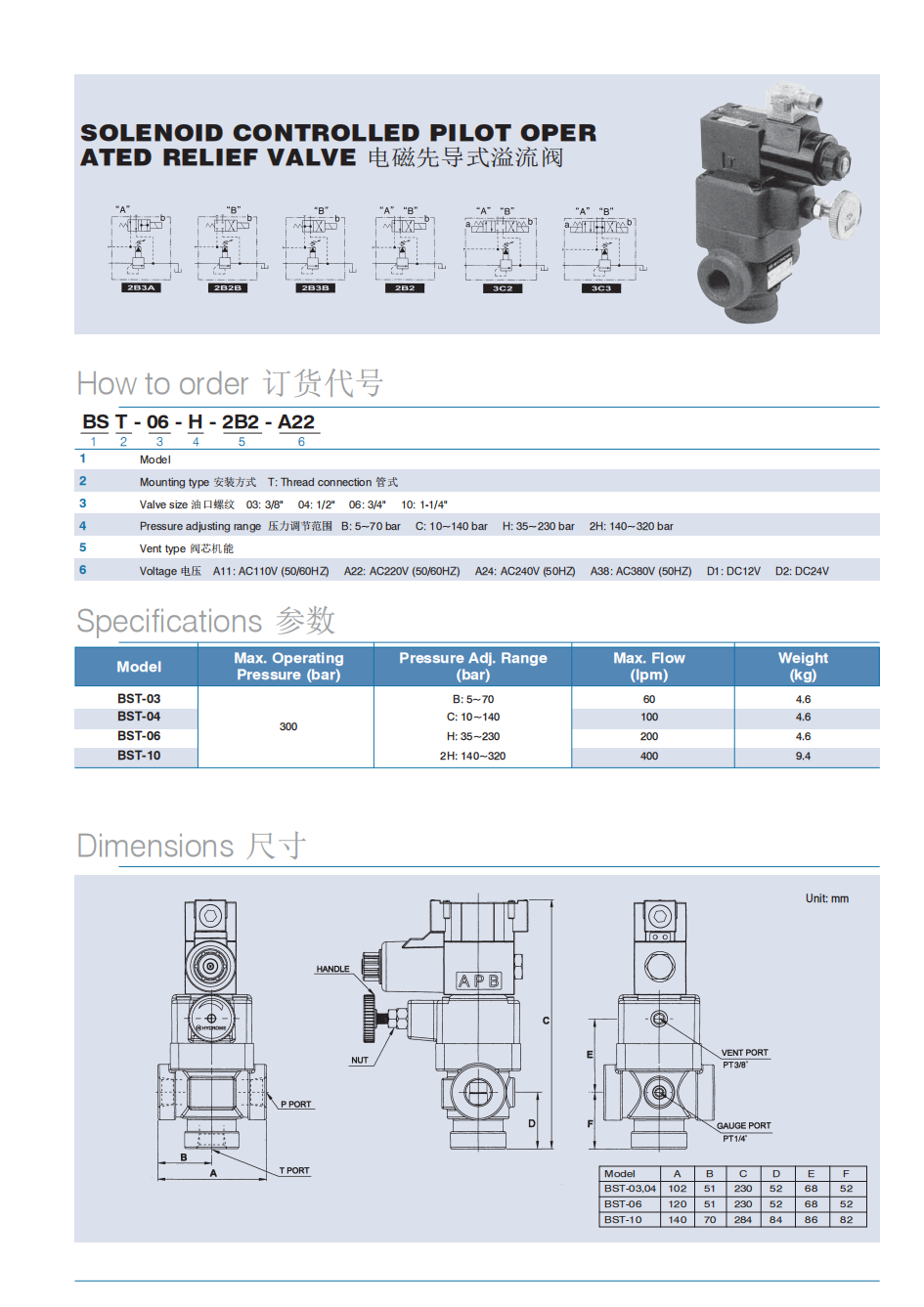

Specification 型号说明
| BS | G | 03 | 1PN | 3 |
|---|---|---|---|---|
| Model 型号 | Installation Type 安装方式 | Port 油口尺寸 | 1PN 常开 | Pressure Control Range 压力调整范围（巴） |
| Model | G:Plate 板式 | 03: 3/8" 06 : 3/4" 10: 1-1/4" | Normally open 1PN | 1: 7-70 2 : 35-140 3 : 70-250 |
Technical Data 技术数据
| Type 类型 | Max. pressure 最大压力（巴） (bar) | Pressure Control range 压力调节范围（巴） (bar) | Max. flow 最大流量（升/分钟） (LPM) | Weight 重量 (kg) | ||
|---|---|---|---|---|---|---|
| BSG-03 | 250 | 1 : 7-70 2 : 35-140 3 : 70-250 | 100 | 5.5 | ||
| BSG-06 | BST-06 | 200 | 4.8 | 4.7 | ||
| BSG-10 | BST-10 | 400 | 5.9 | 7.9 | ||
Attachment 配件
| Type | Safety screw | |
|---|---|---|
| BSG-03 | M12 x 70L…… 2pcs | M12 x 95L…… 2pcs |
| BSG-06 | M16 x 60L…… 2pcs | M16 x 80L…… 2pcs |
| BSG-10 | M20 x 70L…… 2pcs | M20 x 90L…… 2pcs |
Model No.型号
BSG-03,BSG-06,BSG-10,BST-03,BST-06,BST-10

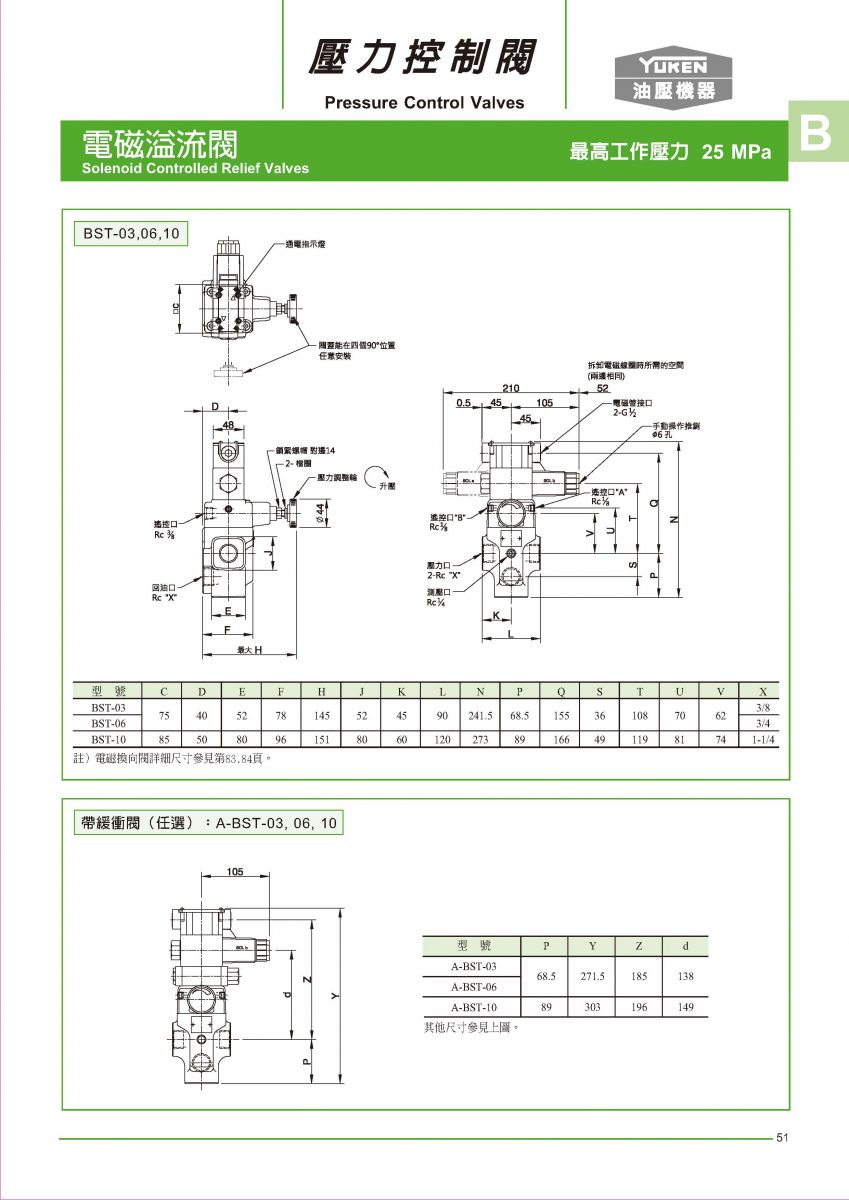

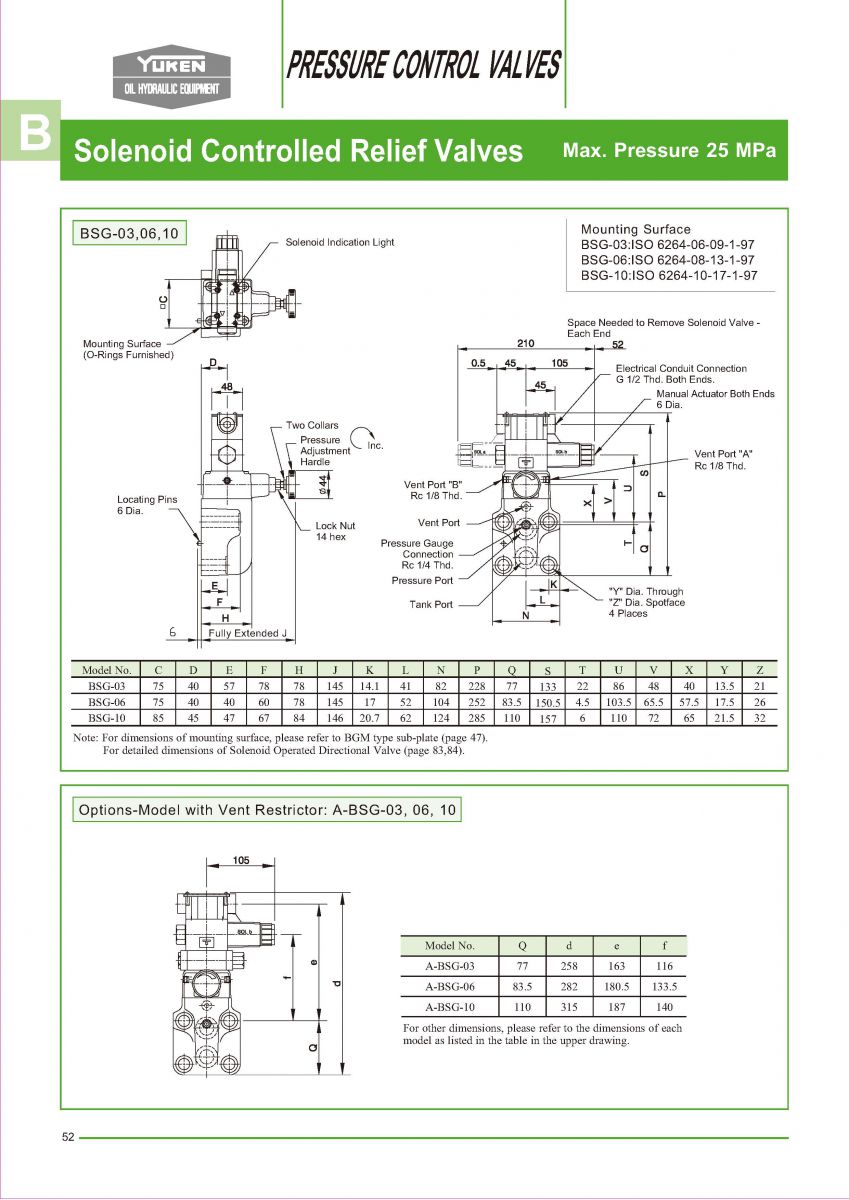

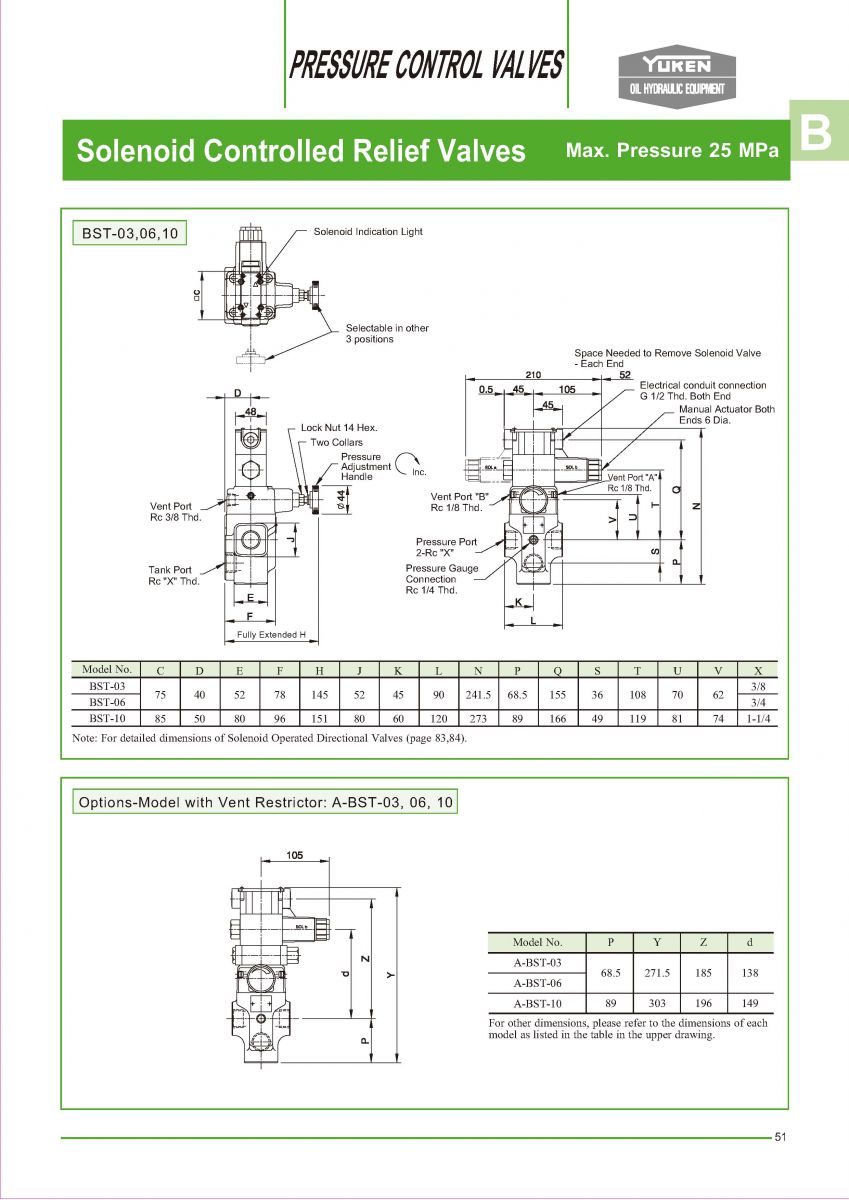

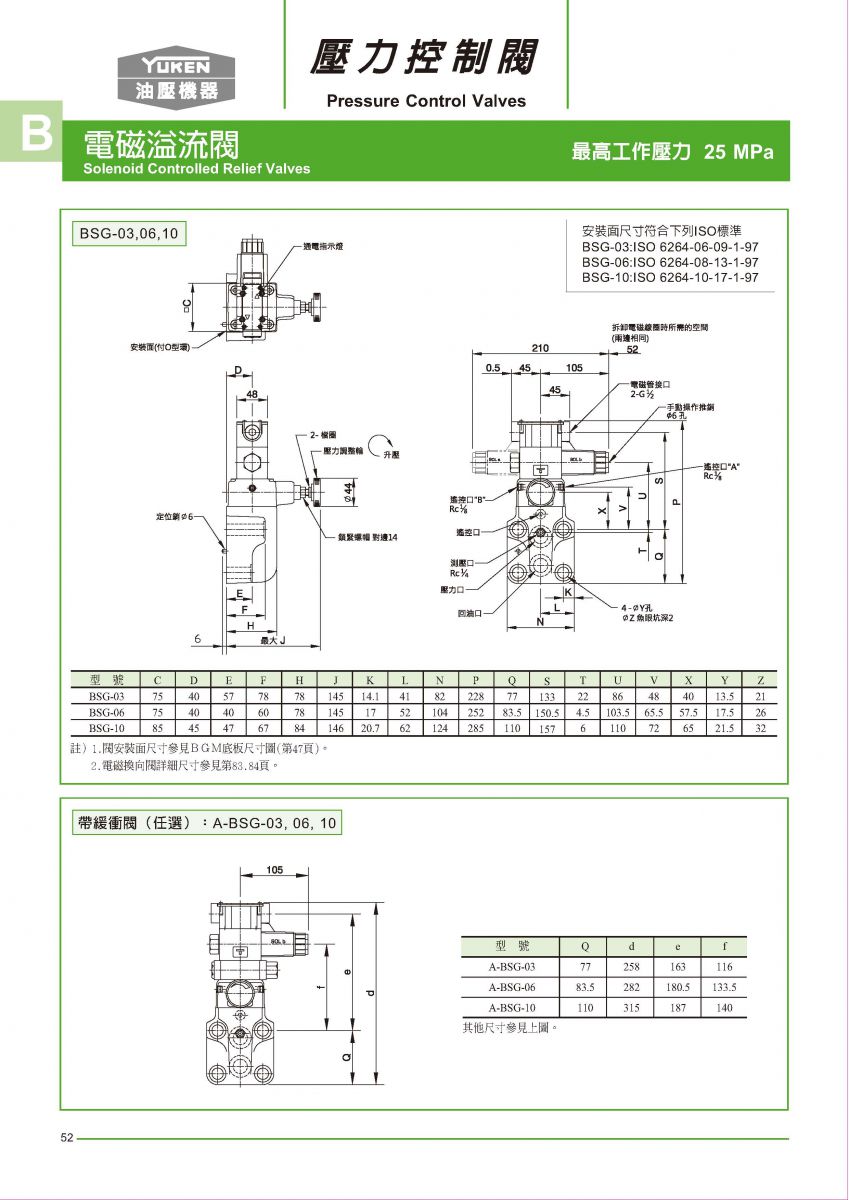

Measurement 尺寸
Instruction
Pressure adjustment: When adjusting the pressure, loosen the lock nut and slowly turn the handle, clockwise for higher pressure, counterclockwise for lower pressure, don't forget to tighten the fixing nut after the adjustment.
Oil return type: The oil return pipe of the direct and remote control type should not be connected with the oil return pipe of other valves, but should be directly returned to the oil tank. If the internal capacity of the return line is too large, frequent vibration is likely to occur. Therefore, the length and diameter of the piping should be reduced as much as possible.
Flow rate selection: When the flow rate is small, the adjustment pressure will be unstable. Therefore, when using caliber 03 and 06, the flow rate should be greater than 5 L/min, and when using caliber 10, the flow rate should be greater than 8 L/min.
压力调节： 调节压力时，松开锁紧螺母，缓慢转动手柄，顺时针方向调高压力，逆时针方向调低压力，调节后不要忘记拧紧固定螺母。
回油式： 直动式和遥控式的回油管不应与其他阀门的回油管连接，而应直接回油箱。如果回油管的内部容量过大，则容易发生频繁振动。因此，应尽量减少管道的长度和直径。
流量选择： 当流量较小时，调节压力会不稳定。因此，使用 03 和 06 口径时，流量应大于 5 升/分钟；使用 10 口径时，流量应大于 8 升/分钟。
